Anzor Pressfit System meets AS/NZS 3688:2016 standards. Designed for fast and easy installation and manufactured from 316L stainless steel to deliver high corrosion resistance. Each fitting is laser-engraved for clear identification—displaying the brand, size, material, and batch number for full traceability. Order before 4pm for same-day dispatch from our huge distribution centre.

Features

• Meets AS/NZS 3688:2016 standards
• Certified in accordance with UNI EN ISO 9001:2015
• Material standard ASTM A-240 316L ensures excellent corrosion resistance

Why Choose Anzor Pressfit?

• Press: No welding, no hassle.
• Fit : Complete connection fast.
• Done: Save time and move on to the next job.

Each fitting is laser-marked with identification:

• Brand
• Diameter
• Material
• Batch number — for full traceability
• All fittings are WaterMark approved — with the exception of tube clamps, which are currently in progress.

Browse Anzor Pressfit System

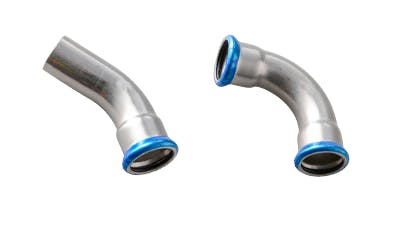

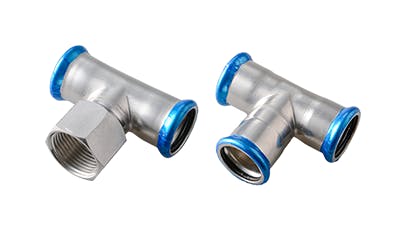

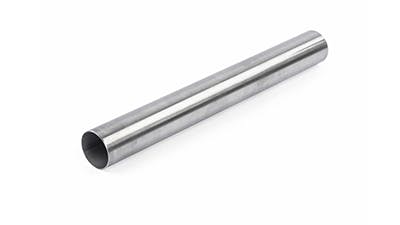

Pressfit Bends & Elbows	Pressfit Tees	Pressfit Tube

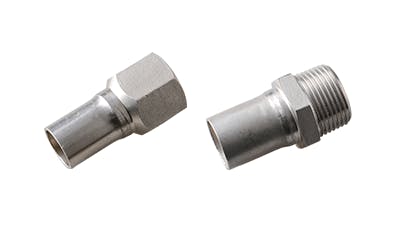

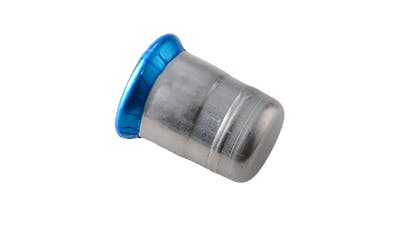

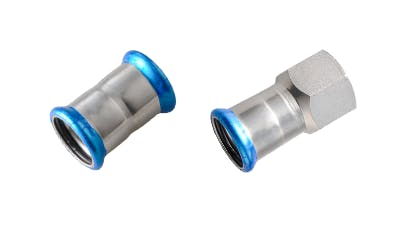

Pressfit Coupler	Pressfit Adaptor	Pressfit End Cap

Applications

• Residential Plumbing: Ideal for potable water lines, ensuring quick and secure connections without the need for soldering
• Commercial Buildings: Used in plumbing and HVAC systems where speed and safety are crucial
• Industrial Applications: Suitable for gas distribution, compressed air systems, and chemical lines
• Hydronic Heating and Cooling Systems: Efficiently used in systems that require quick installation and minimal downtime
• Greywater and Rainwater Systems: Effective for non-potable water systems
• Fuel, Oil, and Lubricant Lines: Provides secure connections for various fluid transport systems

Connection Process

The press fit system relies on mechanically joining pipes and fittings using a sealing O-ring and pressing tool.

• The O-ring is positioned in the U-groove at the end of the fitting.
• The pipe is then inserted into the fitting up to its insertion depth limit.
• A pressing tool is used to create a mechanical deformation at the fitting, securing the connection and compressing the O-ring to form a leak-proof seal.
• The resulting polygonal pressing profile varies depending on the diameter and may appear hexagonal or triangular-like.

System Specifications

1. Size Range: 15mm to 108mm
2. Standard Compliance: DVGW W534
3. Working Pressure: Up to 16 bar

Fitting Thickness:

• Diameters 15, 18, 22, 28, 35, 42, 54mm: 1.5mm
• Diameters 76.1, 88.9, 108mm: 2.0mm

Click here to download Anzor Pressfit System Brochure

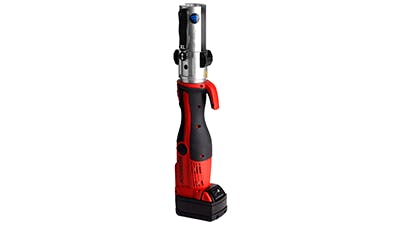

How to Use Pressfit Tools

Browse Pressfit Tools

Press Fit Tools are available for hire exclusively to customers with an Anzor Credit Account.

• Tools will be jointly inspected with the customer prior to use and again upon return.
• Please note that hire is not available to Cash Account holders.
• Contact: etsales@anzor.co.nz

Why deal with Anzor?



• Fast Delivery: 97% of orders placed before 4:00pm are dispatched on the same day

• 100% NZ Owned & Operated: Deal directly with our friendly staff across all 12 branches nationwide

• Largest Stock & Widest Range: Our local branches are brimming with stock and backed up by our huge NZ distribution centre


You may also like

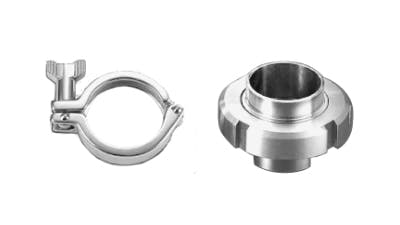

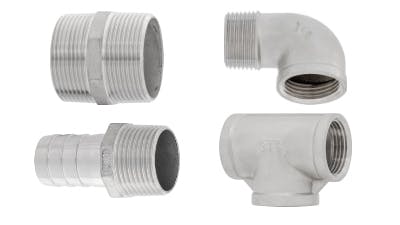

Sanitary Fittings	BSP & NPT Fittings	Pressfit Tools
