M10 Type GF Lindapter Gratefast Option 1
LDGF10HDG
In Stock
|
|

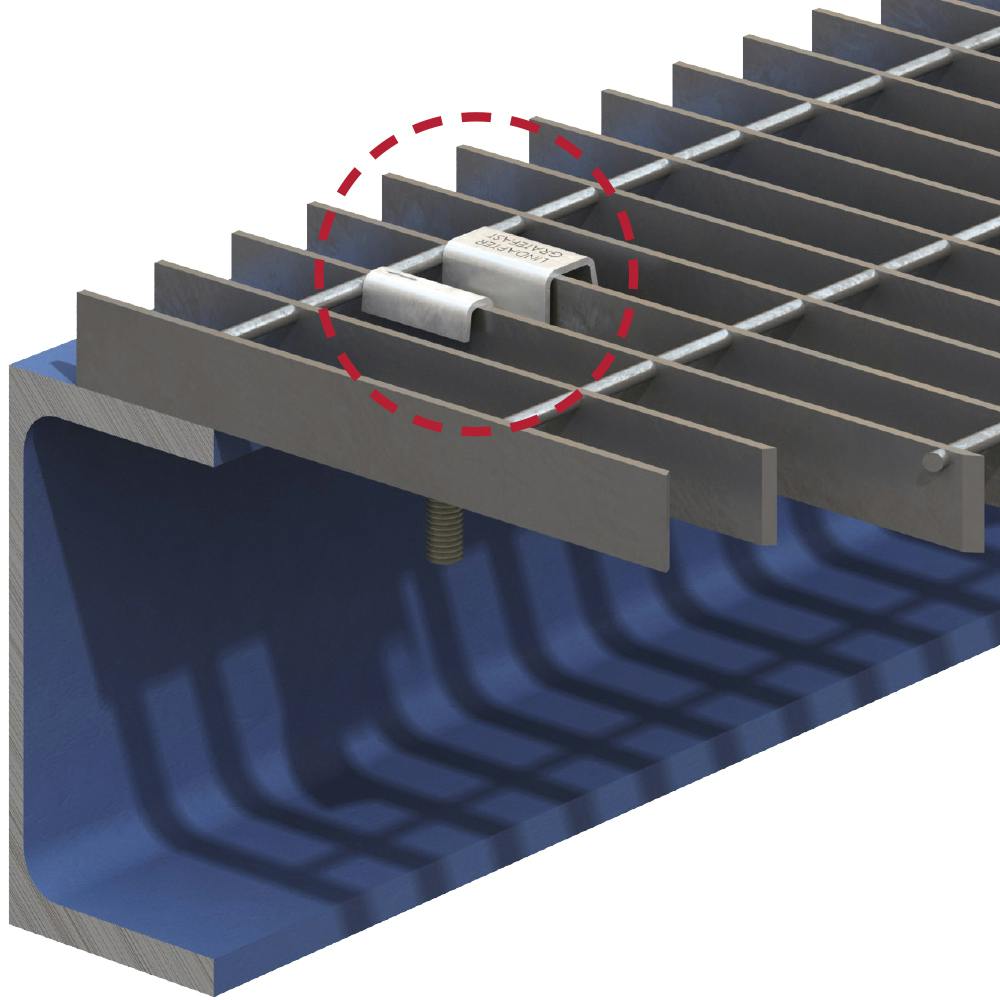

A high strength floor fixing for securing rectangular open bar grating to the supporting steelwork without the need for on-site drilling or welding.
The Type GF Grate-Fast fixing eliminates the need for costly scaffolding or elevated floors as access to the underside of the flooring is not required. Installation is carried out quickly and safely from above, often by one person, significantly reducing costs. The malleable iron cast body along with the unique stepped clamping face, which locks under the steelwork, provides outstanding clamping force and a secure connection.
European Technical Assessment - ETA 20/0919
• Top Hat:
◦ Stainless steel grade 304 (GF08 only).
◦ Mild Steel, hot dip galvanised (GF10HDG & GF210HDG only).
• Body:
◦ Malleable iron, Sheraplex (GF08 only).
◦ Malleable iron, hot dip galvanised (GF10HDG & GF210HDG only).
Durability and corrosion protection:
| Corrosivity Class | Galvanised Steel | Electroplated Steel |
|---|---|---|
| C1 | More than 50 years | More than 20 years |
| C2 | More than 50 years | More than 5 years |
| C3 | More than 20 years | Not Suitable |
For C4 and C5 corrosion categories, contact us.
|
