M20 Type AF Lindapter P2 Packing Girder Clamp HDG
LDAF20P2
In Stock
|
|
The Type AF girder clamp is used to achieve a fast steelwork fixing connection where high load capacities are present in either tensile, frictional or combined load directions. It has a recessed top to hold the bolt head captive while the nut and washer are tightened down using only one tool, alternatively use a Type AFW washer to convert the recess to a flat top. The skirt on the underside of the clamp abuts the edge of the beam flange and prevents the clamp rotating during installation. Manufactured from SG iron with a hot dip galvanised finish to provide high performance and anti-corrosion protection.
NEW Independently fire tested in accordance with ISO 834 for a duration of 120 minutes. For further details and load data please contact Lindapter.
European Technical Assessment - ETA 20/0918

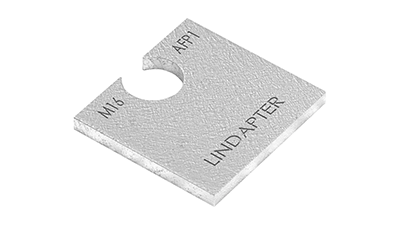

Tail Lengths & Packing Pieces
The clamp is available in two tail lengths, Short or Medium, and can be used with Lindapter packing pieces to increase the clamping range. Choose the correct combination of tail length and packing pieces to suit a specific flange thickness. Download datasheet for selection table.
Location & End Plates
These plates ensure the clamps and bolts are located in the correct position relative to the supporting steelwork. Location plates are simple fabricated items designed to sit between the two sections to be clamped together to ensure the bolts are fixed at the correct centres. End plates are simple fabricated items that are pre-welded to support frames, bracket or sections, allowing connection to the supporting structure with standard Lindapter clamps. Download datasheet for further information.
Build safe and secure steel connection with Lindapter’s Girder Clamp Configurator, click here to visit Lindapter.
Durability and corrosion protection:
| Corrosivity Class | Galvanised Steel |
|---|---|
| C1 | More than 50 years |
| C2 | More than 50 years |
| C3 | More than 20 years |
|
M20 Type AF Lindapter P2 Packing Girder Clamp HDG
LDAF20P2
In Stock
|
|
The Type AF girder clamp is used to achieve a fast steelwork fixing connection where high load capacities are present in either tensile, frictional or combined load directions. It has a recessed top to hold the bolt head captive while the nut and washer are tightened down using only one tool, alternatively use a Type AFW washer to convert the recess to a flat top. The skirt on the underside of the clamp abuts the edge of the beam flange and prevents the clamp rotating during installation. Manufactured from SG iron with a hot dip galvanised finish to provide high performance and anti-corrosion protection.
NEW Independently fire tested in accordance with ISO 834 for a duration of 120 minutes. For further details and load data please contact Lindapter.
European Technical Assessment - ETA 20/0918
Tail Lengths & Packing Pieces
The clamp is available in two tail lengths, Short or Medium, and can be used with Lindapter packing pieces to increase the clamping range. Choose the correct combination of tail length and packing pieces to suit a specific flange thickness. Download datasheet for selection table.
Location & End Plates
These plates ensure the clamps and bolts are located in the correct position relative to the supporting steelwork. Location plates are simple fabricated items designed to sit between the two sections to be clamped together to ensure the bolts are fixed at the correct centres. End plates are simple fabricated items that are pre-welded to support frames, bracket or sections, allowing connection to the supporting structure with standard Lindapter clamps. Download datasheet for further information.
Build safe and secure steel connection with Lindapter’s Girder Clamp Configurator, click here to visit Lindapter.
Durability and corrosion protection:
| Corrosivity Class | Galvanised Steel |
|---|---|
| C1 | More than 50 years |
| C2 | More than 50 years |
| C3 | More than 20 years |
