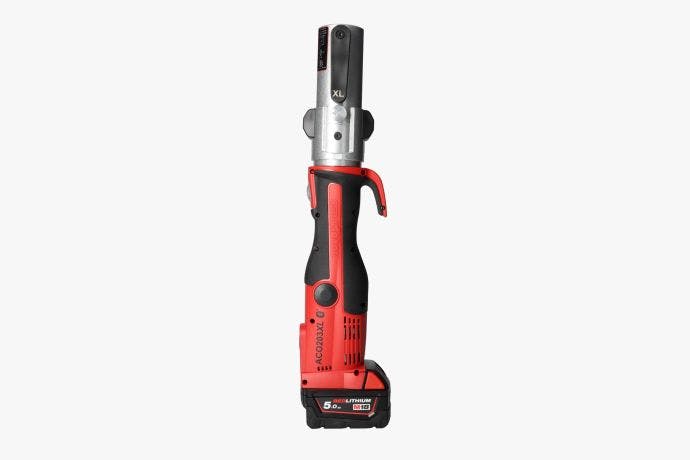

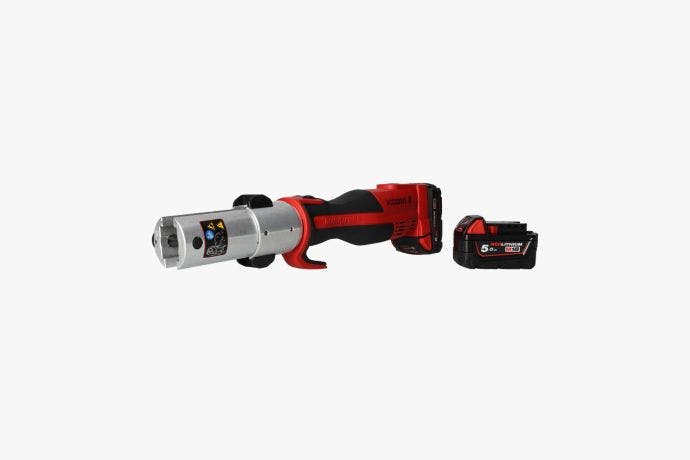

• Lightweight and easy to handle: At just 3.9 kg including battery, the ACO203XL crimping tool is significantly lighter than its predecessors. This makes it easier to handle and reduces fatigue during long periods of use.
• Wide range of applications: The ACO203XL crimping tool covers nominal widths of 12-108 mm for metal pipe systems and 14-110 mm for plastic pipe systems, making it extremely versatile.
• Greater efficiency: Thanks to increased efficiency, the cordless crimping machine enables up to 40 % more crimps per battery charge*.
• Rotating head: The rotating head makes it easier to work in tight and hard-to-reach areas.
• Return stroke limiter: The return stroke limiter enables faster crimping with compatible crimping jaws thanks to an adjustable stroke.
• Low maintenance requirements: The new motor technology reduces maintenance requirements and increases the service life of the device.
• NovoCheck app: With the new wireless technology, device-related data can be called up and evaluated via the NovoCheck app.

• Drinking water, gas and heating installations, pipe installations in the refrigeration/air conditioning sector, industry and commercial applications and many more

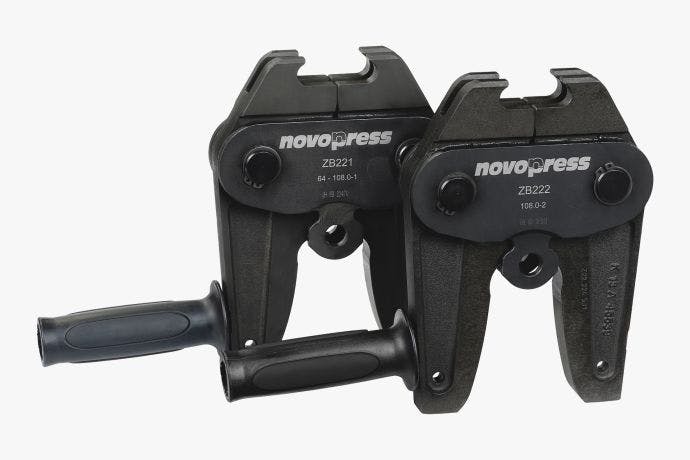

• Suitable for all authorized jaws of other system manufacturers in the market
• All common profiles for metal and plastic systems available

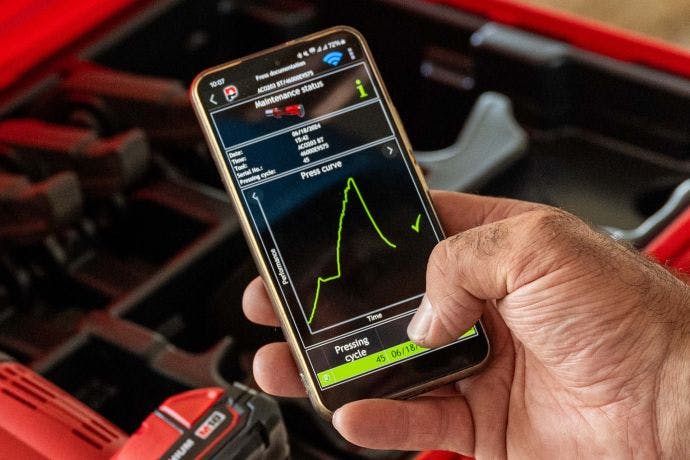

Download the NovoCheck app that combines smartphone technology with pressing technology.
 A wireless connection between the pressing device and the mobile phone or tablet enables the installer to access device-related data using the NovoCheck app.


This means that you, as an installer, are able to check the status of the device yourself. By checking the power build-up, the LED functionality and the pressing point lighting, you can use the NovoCheck app to determine whether your device is working properly without the help of the service point.

Nominal widths metal: up to 108 mm

Nominal widths plastic: up to 110 mm

Piston force: 32 kN

Piston stroke: 80 mm (optional 40 mm)

Weight: 3.2 kg

Length: 460 mm

Width: 83 mm

Height: 113 mm

Electrical power consumption: 450 W

Battery: Milwaukee® M18™ battery system

Battery capacity: up to 250 pressings

Charging time: 45 - 75 min.

Tool & Battery Warranty Information

• Tools: 2-year warranty, needs to be calibrated every two years
• Batteries: 1-year warranty

For details on warranty coverage, click here for Novopress Guarantee.
