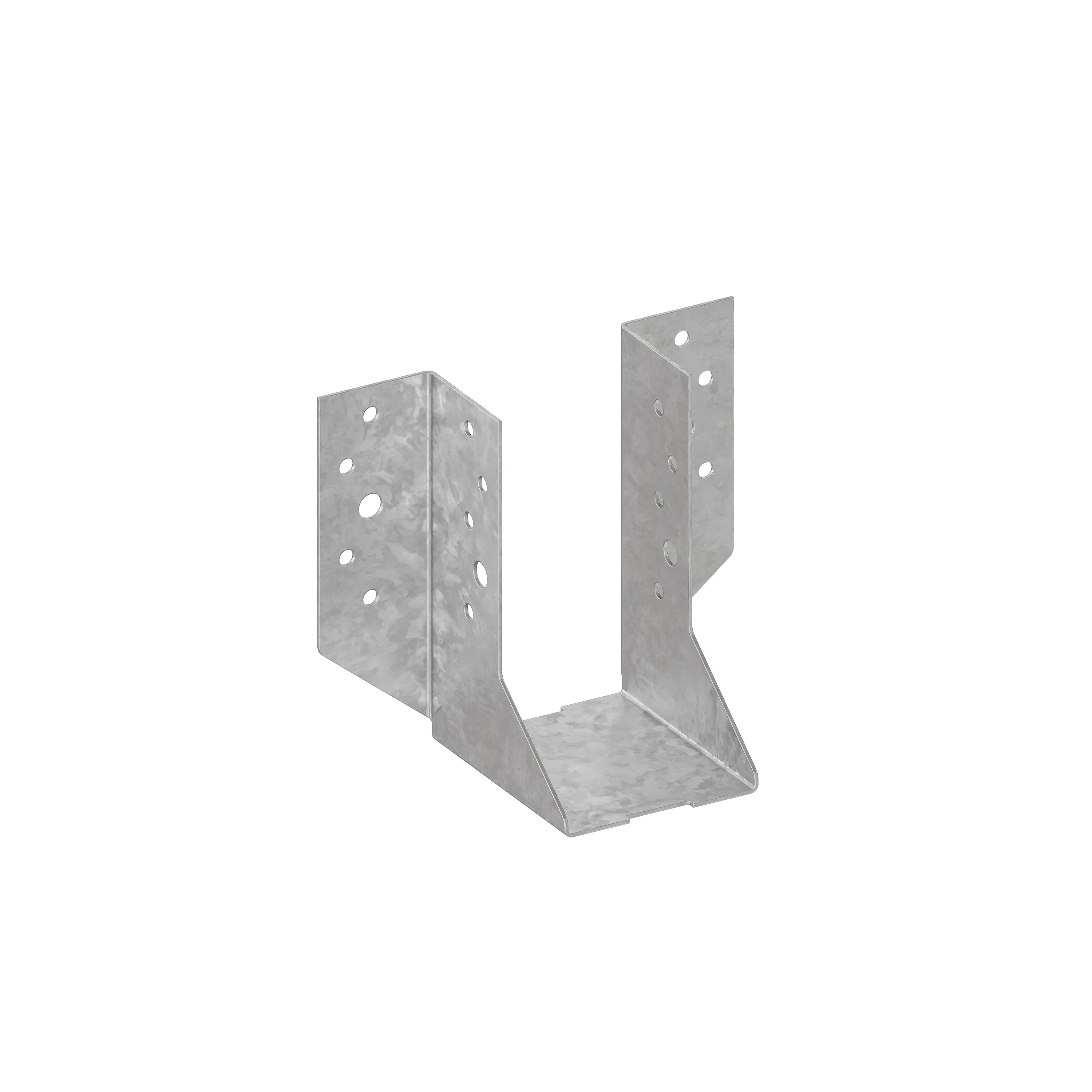

47 X 90 Zinc Joist Hanger
ZBJH47090G
In Stock
|
|

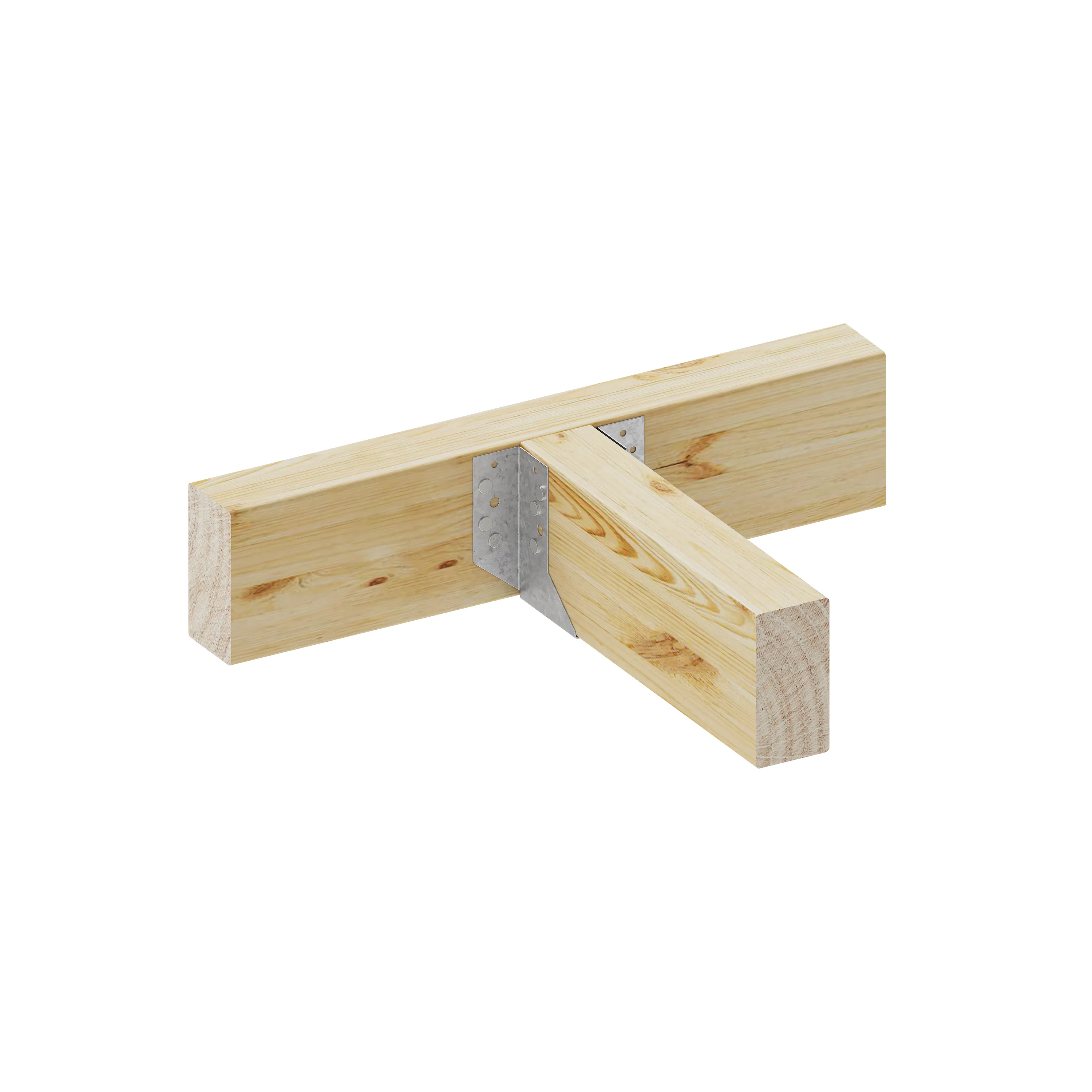

Joist Hangers are designed for use where a strong, rigid joint is required between members meeting at 90˚, e.g. truss/joist to beam, or rafter to bearer connection.
Materials: 0.91mm G300 Z275 Steel
Finish: Zinc Coated
Joist Hanger 47 x 90 Designed for use where gauged timber of 47mm width and up to 150mm deep.
Joist Hanger 47 x 120 Multi-use bracket suitable for gauged 47mm thick timber up to 200mm deep.
Joist Hanger 47 x 190 Used for gauged 47mm thick timber up to 300mm deep.
Joist Hanger 70 x 180 A special size joist hanger designed for gauged 69mm wide timbers.
Joist Hanger 95 x 165 For use on gauged 94mm wide timber or double joists/trusses.
Note: Joist Hangers 52mm wide also available for rough sawn timber.
All of the above Joist Hanger connections should be fixed using LUMBERLOK Product Nails 30mm x 3.15mm diameter, or Type 17-12g x 35mm Hex Head Screws.
|
