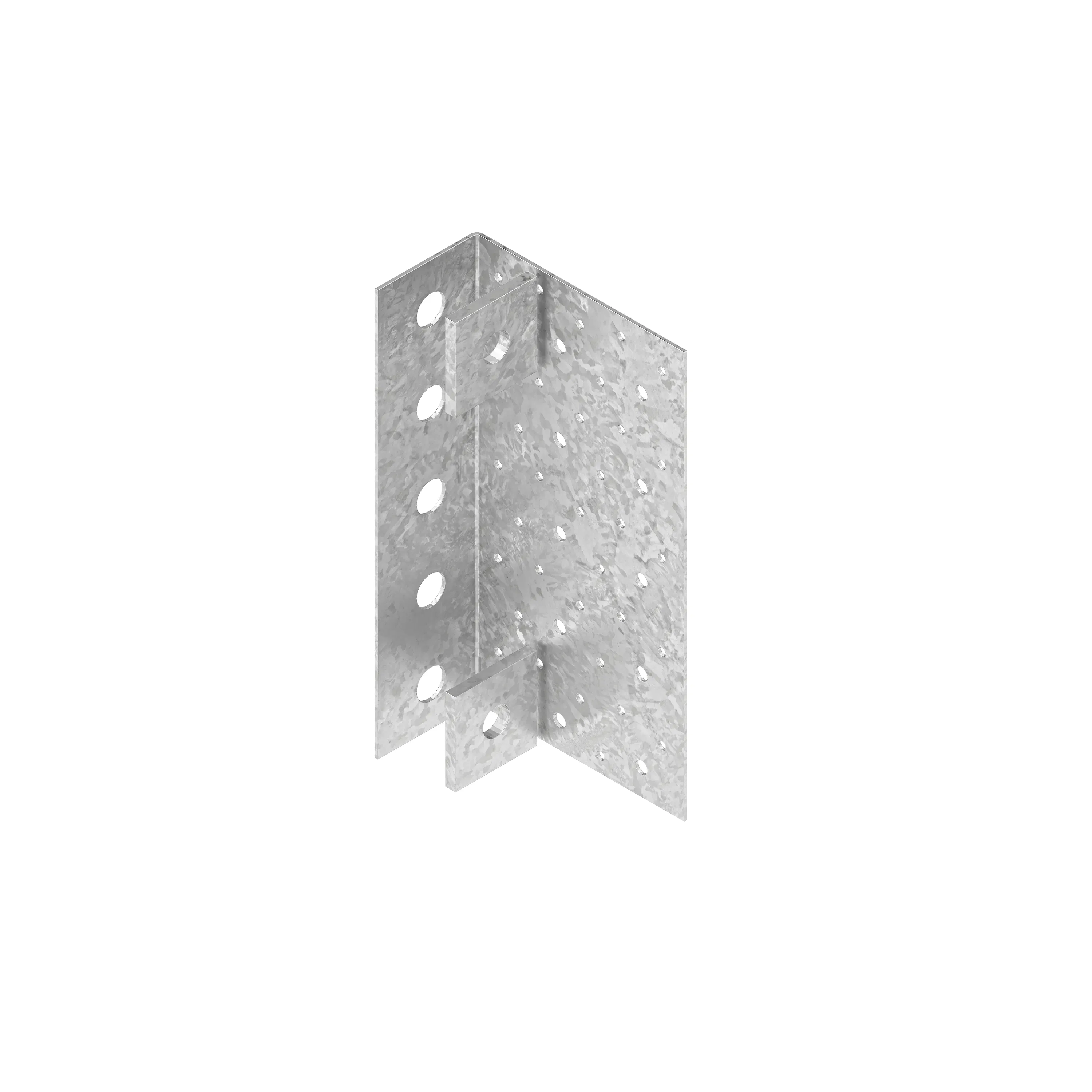

CF2X Concrete Fixing Cleat Galv
ZBCF2X
In Stock
|
|

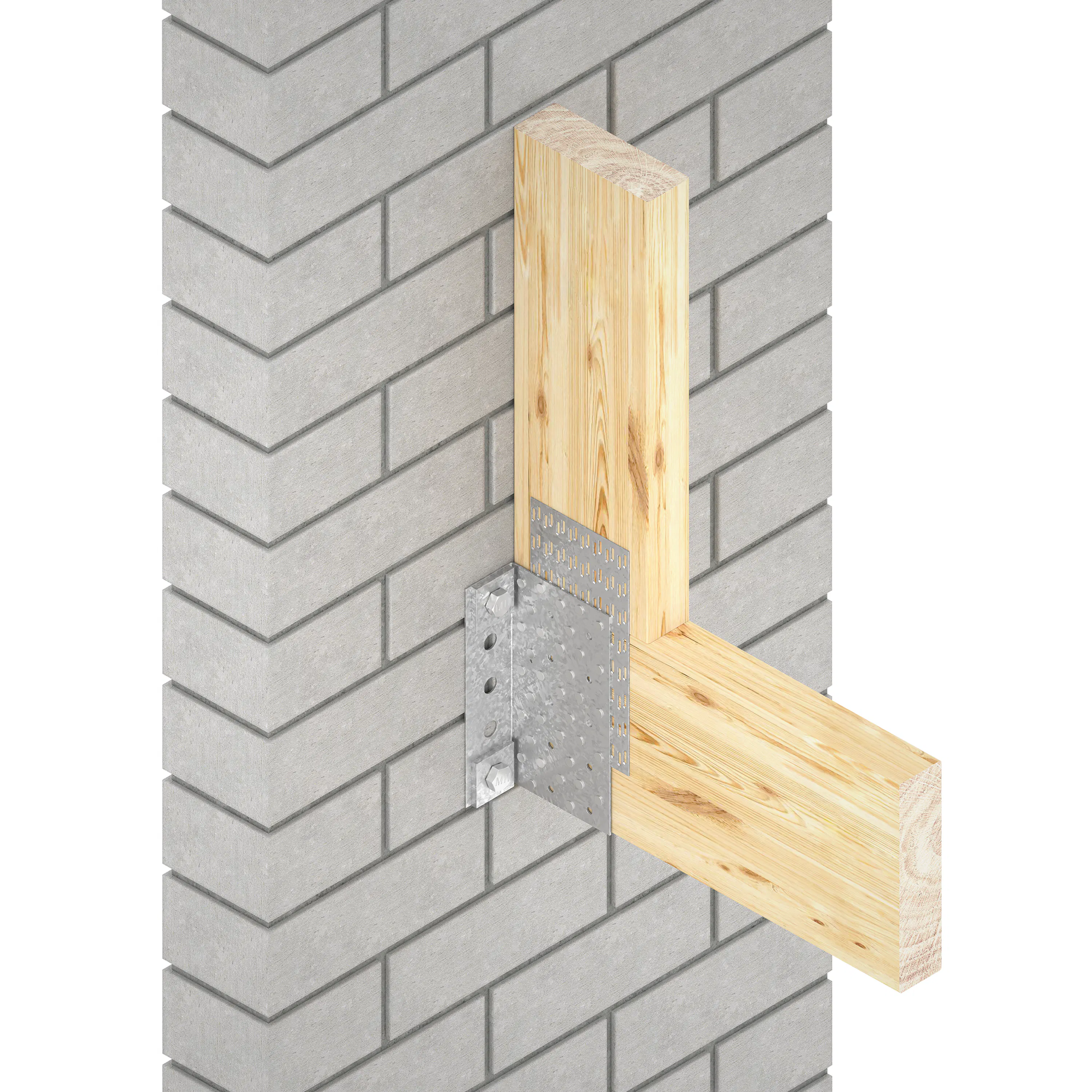

Both cleats provide a quick and economical method of fixing timber trusses, beams, columns to solid concrete or grouted concrete blockwork. Both cleats can be used on one or two sides of timber members, depending on the loads required. Fixed with LUMBERLOK Product Nails 30mm x 3.15mm diameter and appropriate M12 bolts (not supplied with product). 40x40x5mm washer supplied.
Materials: 1.55mm G300 Z275 Steel
Finish: Zinc Coated
|
CF2X Concrete Fixing Cleat Galv
ZBCF2X
In Stock
|
|
Both cleats provide a quick and economical method of fixing timber trusses, beams, columns to solid concrete or grouted concrete blockwork. Both cleats can be used on one or two sides of timber members, depending on the loads required. Fixed with LUMBERLOK Product Nails 30mm x 3.15mm diameter and appropriate M12 bolts (not supplied with product). 40x40x5mm washer supplied.
Materials: 1.55mm G300 Z275 Steel
Finish: Zinc Coated

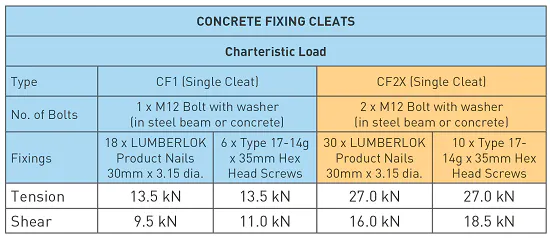

Load Table
