• The centring sleeve PBZ fixes the anchor in the drill hole, thus also allowing for overhead installation.
• Designed for use in 14mm-diameter drill holes created with fischer cone drill bit PBB.
• Suitable for anchor rods M8, M10 and M12.

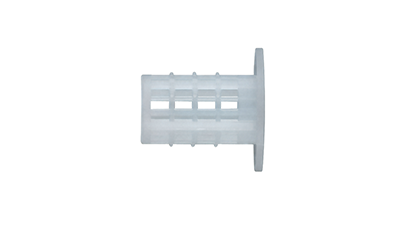

• The fischer centring sleeve PBZ is a system component for use with the fischer injection mortars FIS V Plus / FIS VS Plus Low Speed / FIS VW Plus High Speed in aerated concrete. The centring sleeve PBZ fixes the fixing element in undercut drill holes. This allows the precise alignment and overhead installation. The centring sleeve PBZ is inserted into the drill hole, the drill hole is then filled from the drill hole mouth with injection mortar and the threaded rods set.

Applications

• Anchorage in aerated concrete with injection mortars FIS V Plus / FIS VS Plus Low Speed / FIS VW Plus High Speed.

Building materials

• Aerated concrete

Approval

• ETA-20/0729
• DoP No. 0381

Functionality

• The centring sleeve PBZ is placed into the drill hole.
• Afterwards, the drill hole is filled with injection mortar from the drill hole mouth and the anchor rod is set.
• The centring sleeve PBZ fixes the anchor rod in the drill hole.

Contents - 10 x Centring sleeve PBZ, 5 x Injection adapter

Packaging - Polybag

Amount - 10 pcs

GTIN (EAN-Code) - 4006209906712
