Flexi-Mesh Enquiry Form

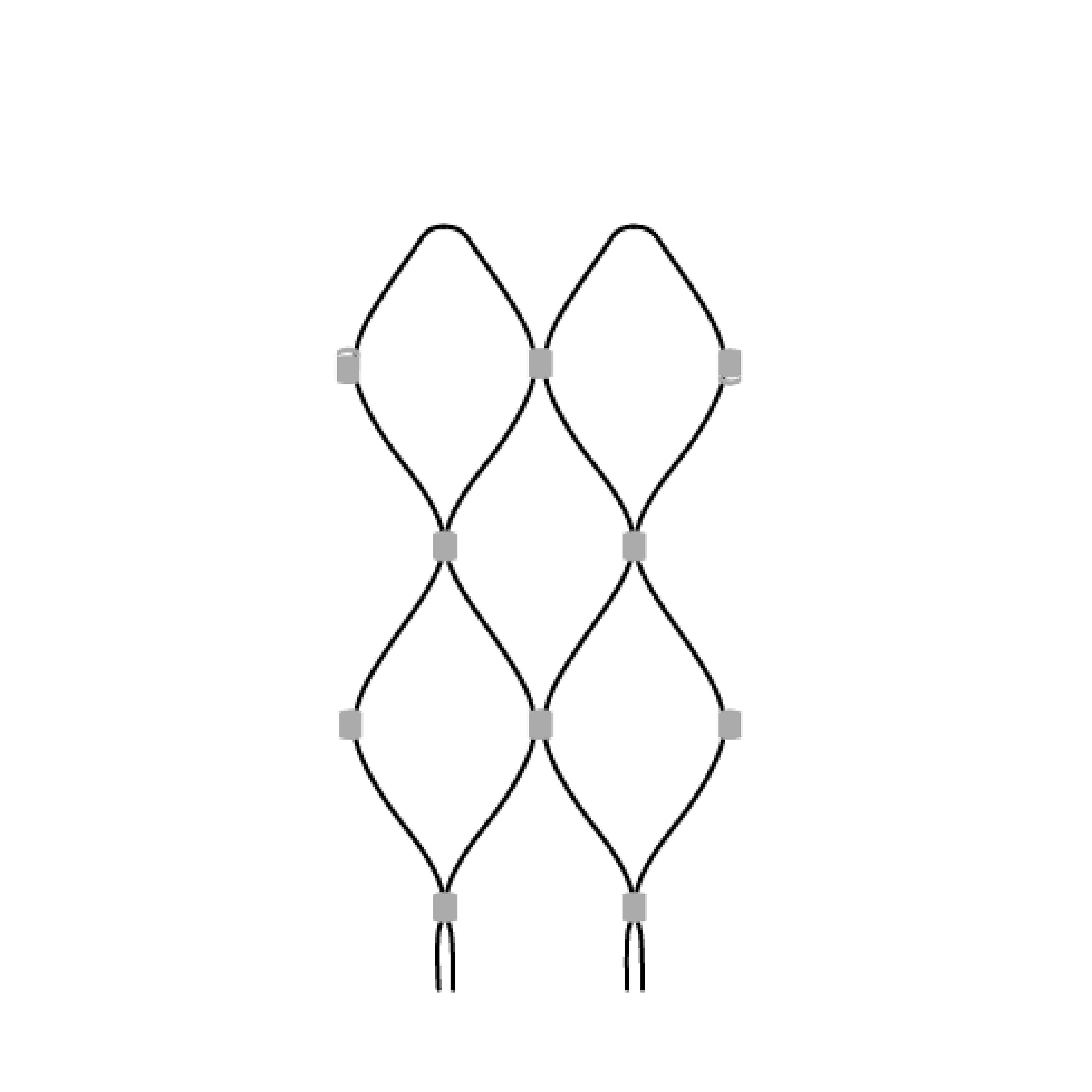

Our flexi-mesh range is the leading material used to create lightweight structures including balustrades, fall protection screens, green walls and facades. Manufactured from high quality Korean made hamma®G316 stainless steel wire, flexi-mesh has a high tensile strength and relatively low weight. It’s unique tensile properties and ability to span long distances minimises the requirements for supporting cables and attachments, reducing overall project costs.

Click below for more information on Flexi-Mesh:

Advantages

Fully Engineered
Structural Design Certification approved
Compliant with Australian / New Zealand Standard AS/NZS 1170. 1 :2002 Structural Design Actions - suitable for areas susceptible to crowding
Compliant with AS5100.1: 2017 Bridge Design

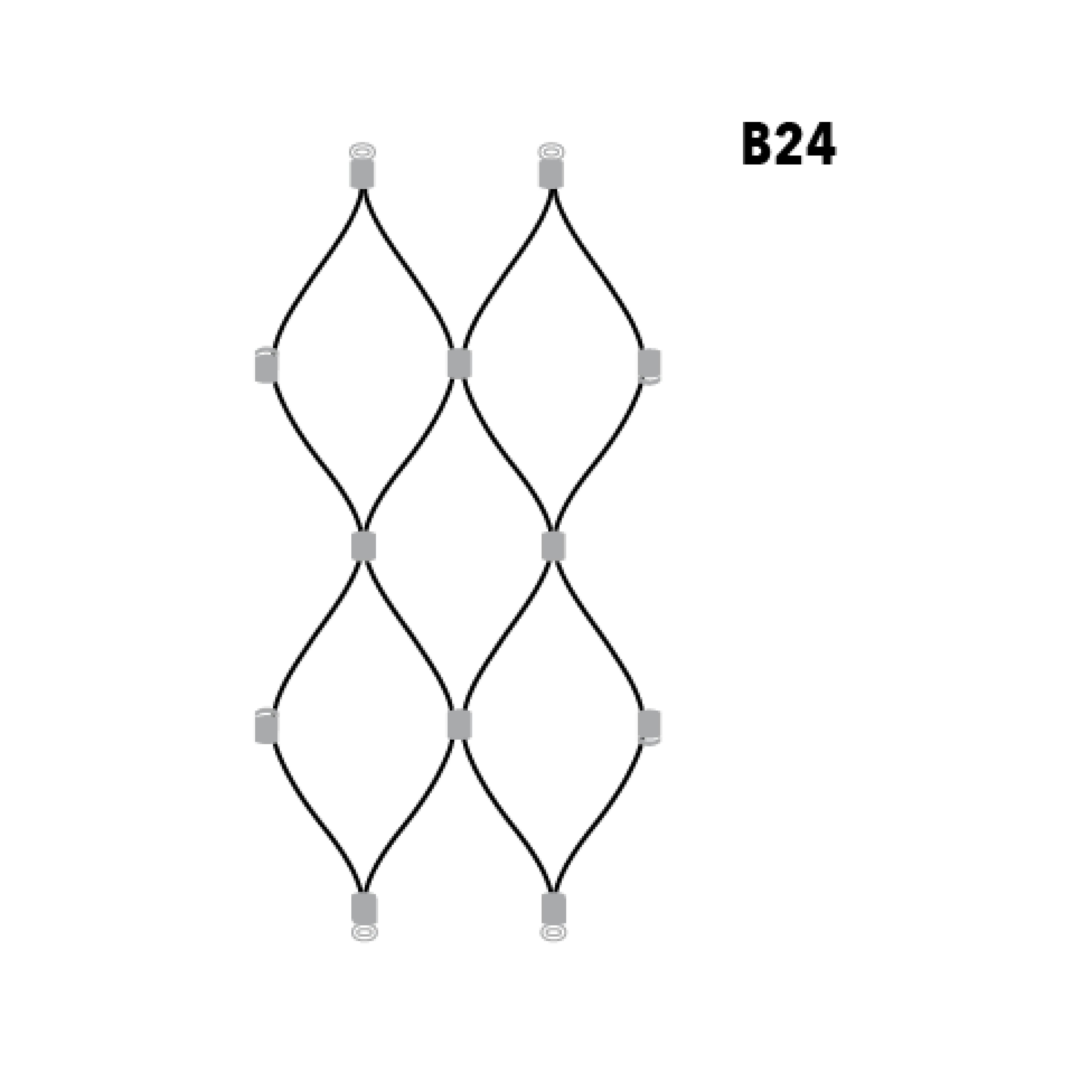

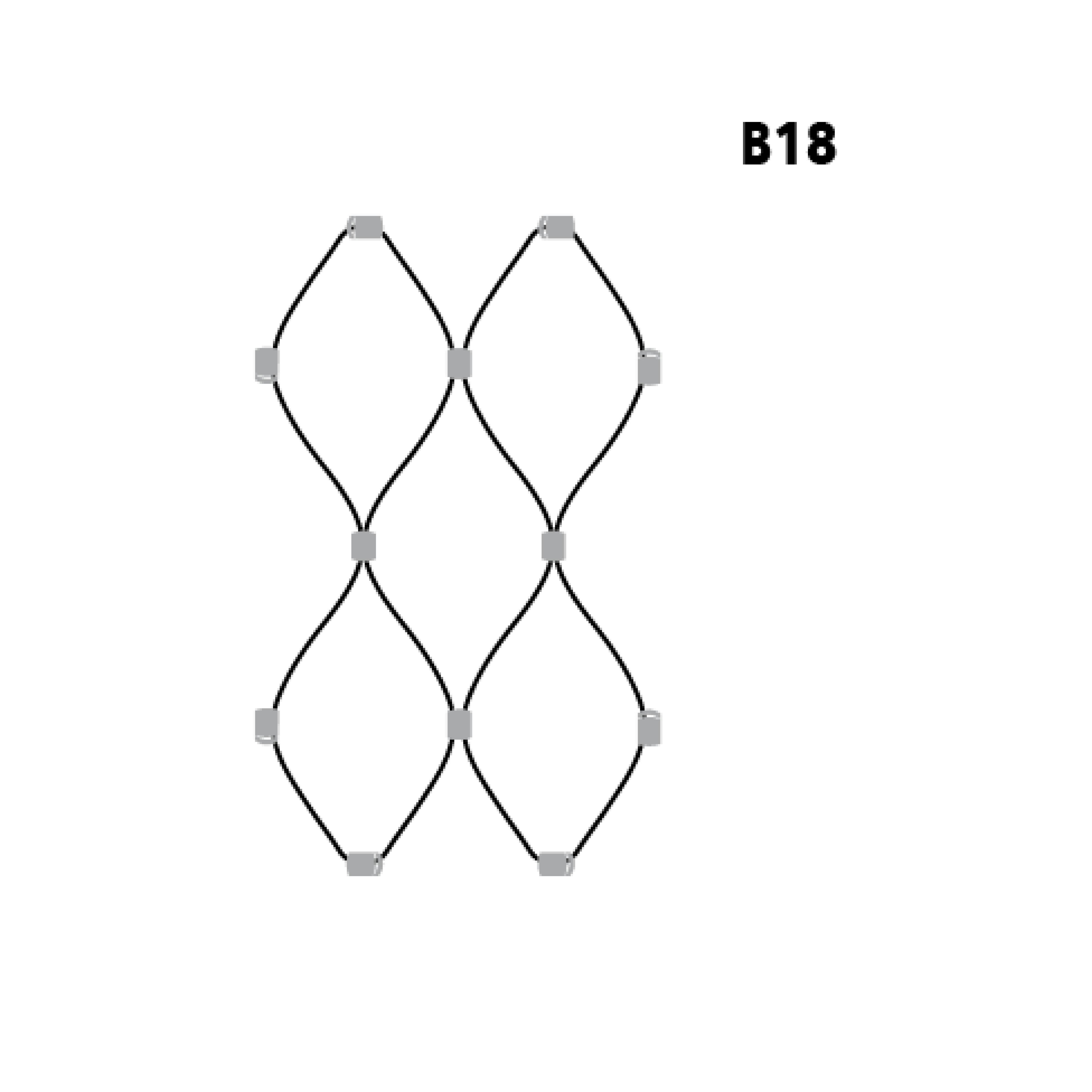

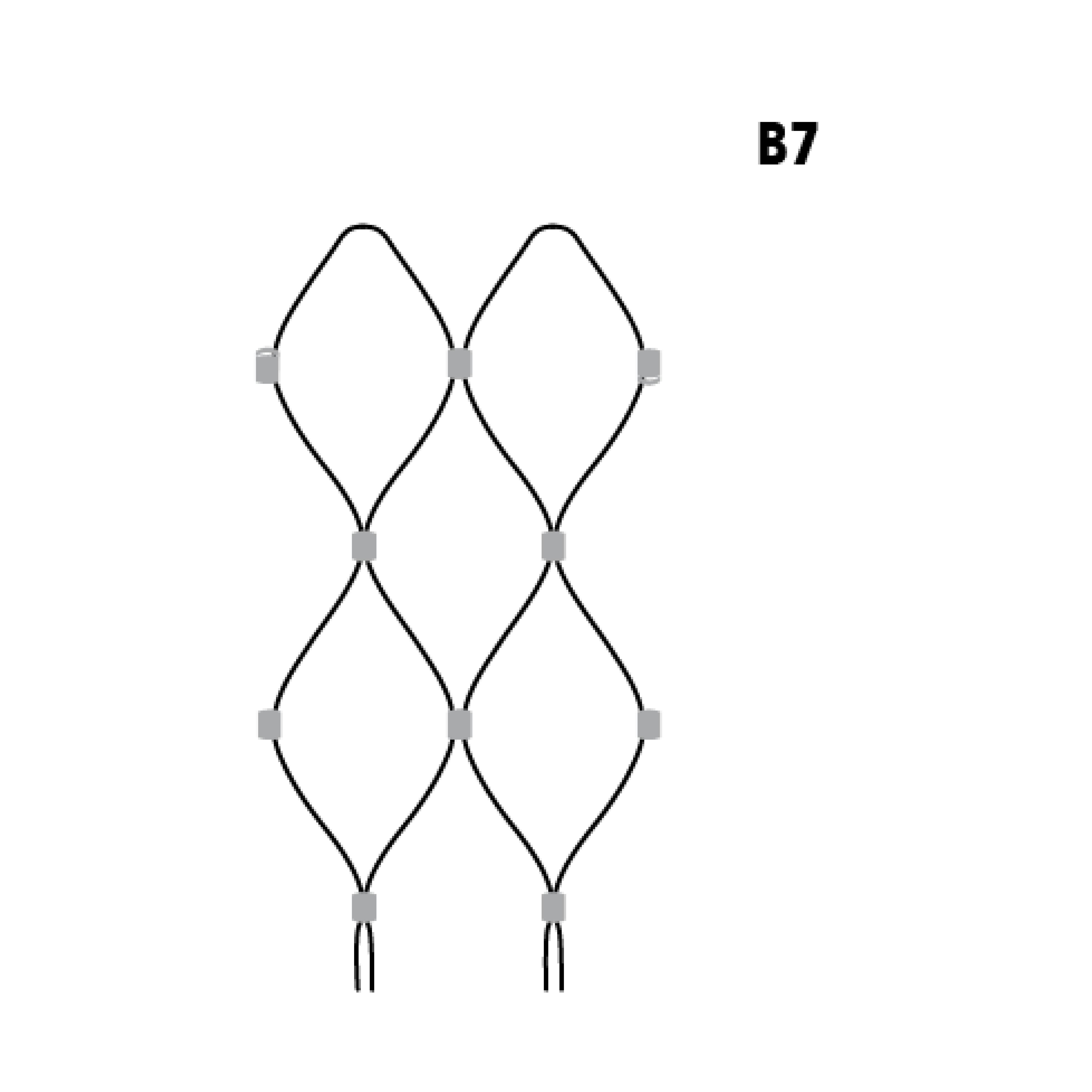

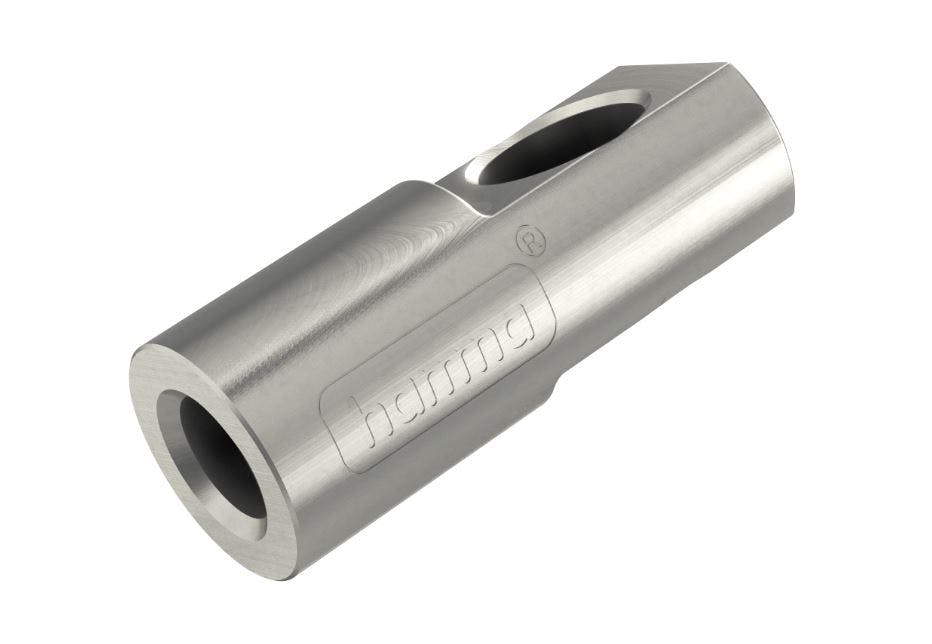

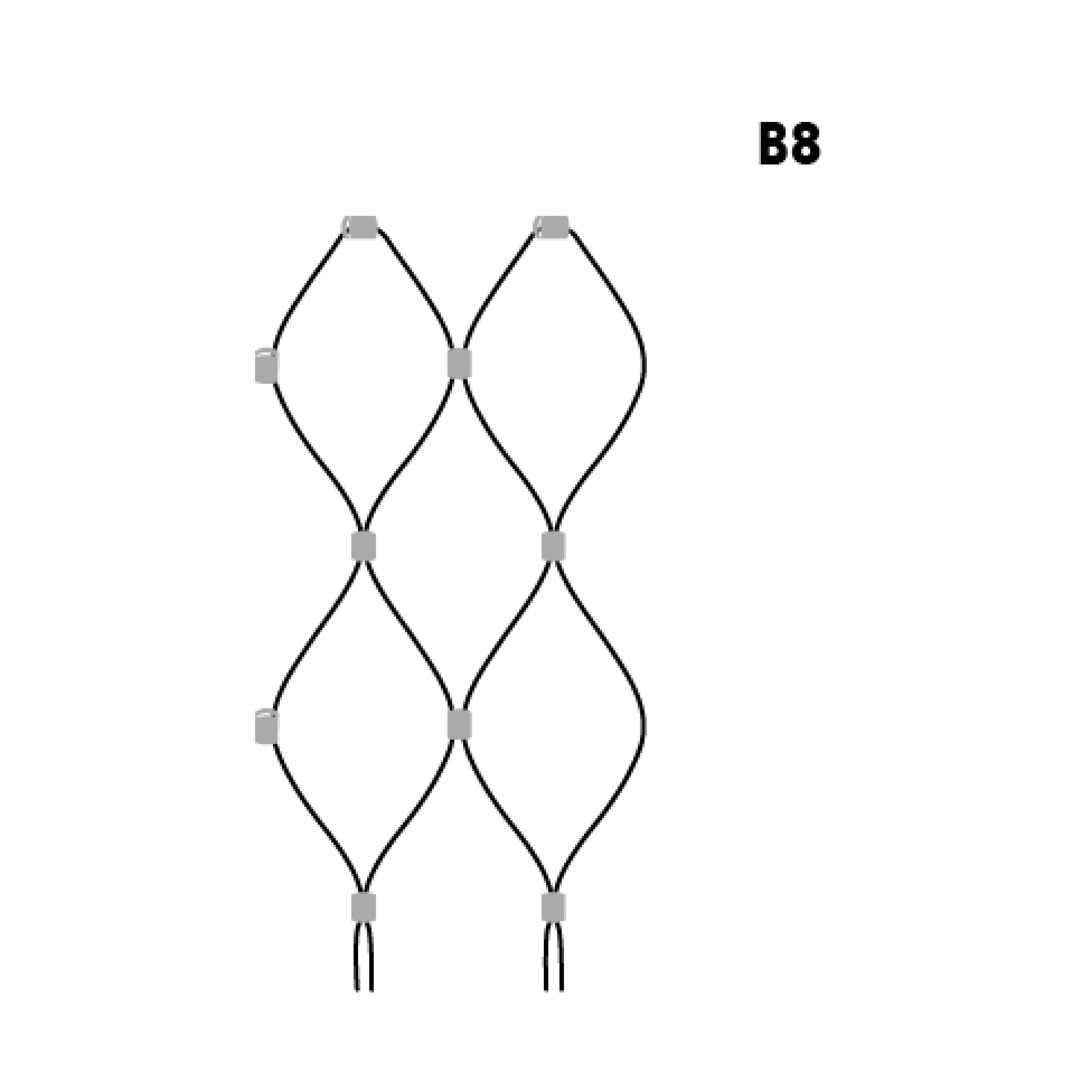

Various fixing details to suit project requirements
Multiple sizing and aperture types to meet specific project parameters
Versatility of uses of a single system include balustrading, fall-arrest, anti-climb, enclosure and screening capabilities

Specifications

High quality 316 Stainless Steel KOS wire Made in Korea
15 year warranty (see Terms and Conditions)
Installation Guidelines
Cleaning and Maintenance
Other projects done with this system
Orders come complete with:
- Full QA/QC Document
- Full Drawings
- Cleaning and Maintenance Guide Test Certificates
For engineering services and PS1 for final design we recommend: P & P Consulting Engineers Ltd, Email: office@pnpltd.co.nz

Applications

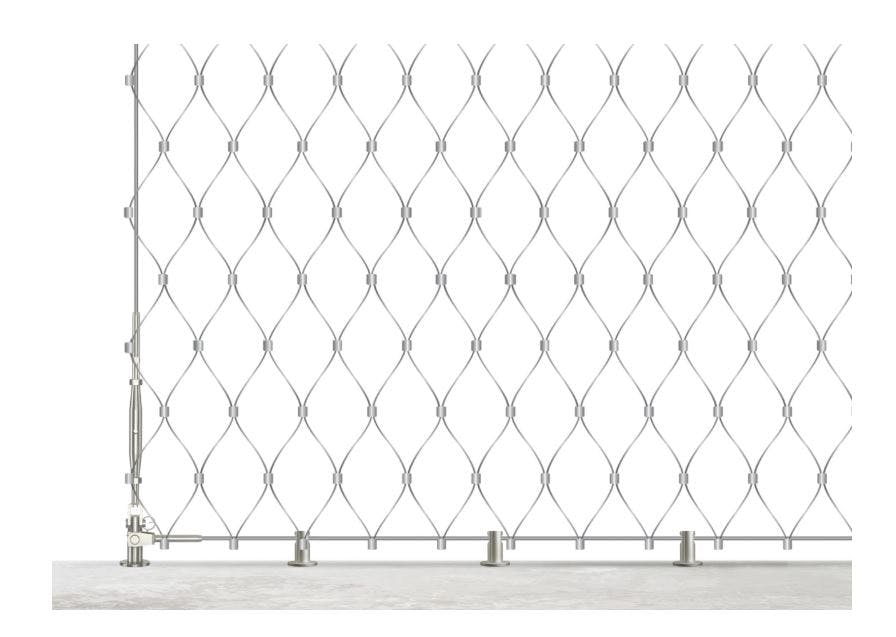

Flexi-Mesh perimeter wire systems can be designed to suit many applications. To view full options and data sheets, please click here

FLEXI-7715-040

Anti-climb protection
Ideal for children's playgrounds, day care centres, and sports courts

FLEXI-7715-060

Balustrade use (stairs, fences, verandahs)
Complies with AS1170.1 - a 125mm sphere cannot pass through

FLEXI-7715-100

Fall protection
Suitable for greenery screens and areas requiring fall safety
125mm sphere cannot pass through

FLEXI-7715-160

Designed for green screen / Greenwall installations

FLEXI-7715-040 (40mm X 70mm)

FLEXI-7715-060 (60mm X 105mm)

FLEXI-7715-100 (100mm X 175mm)

FLEXI-7715-160 (160mm x 275mm)

Measuring for barrier, balustrade and foliage applications

Measure the height and length for the Flexi-Mesh panel to cover
1. Balustrades require the infill height x length measurement
2. Foliage walls can be as large as 20m x 50m

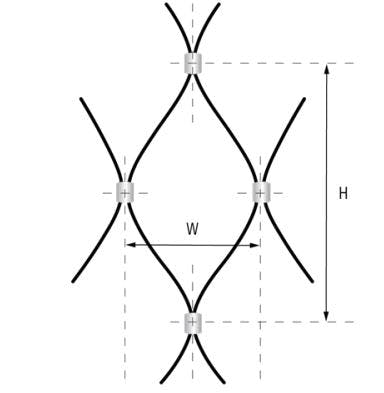

Flexi-Mesh aperture measurements
1. Flexi-Mesh aperture measurements for barrier and balustrade applications must be max. 50mm from point to point as stated in The Department of Building and Housing B1 Building Code Guidance on Barrier Design March 2012 guide
2. Flexi-Mesh aperture for foliage wall can be determined by the customer
Flexi-Mesh measurements that result in half apertures will require splicing and re-weaving of Flexi-Mesh panels.
