M16 Type P1 Lindapter Short Packing HDG
LDP1S16HDG
In Stock
|
|
Packing Pieces for Types A and B

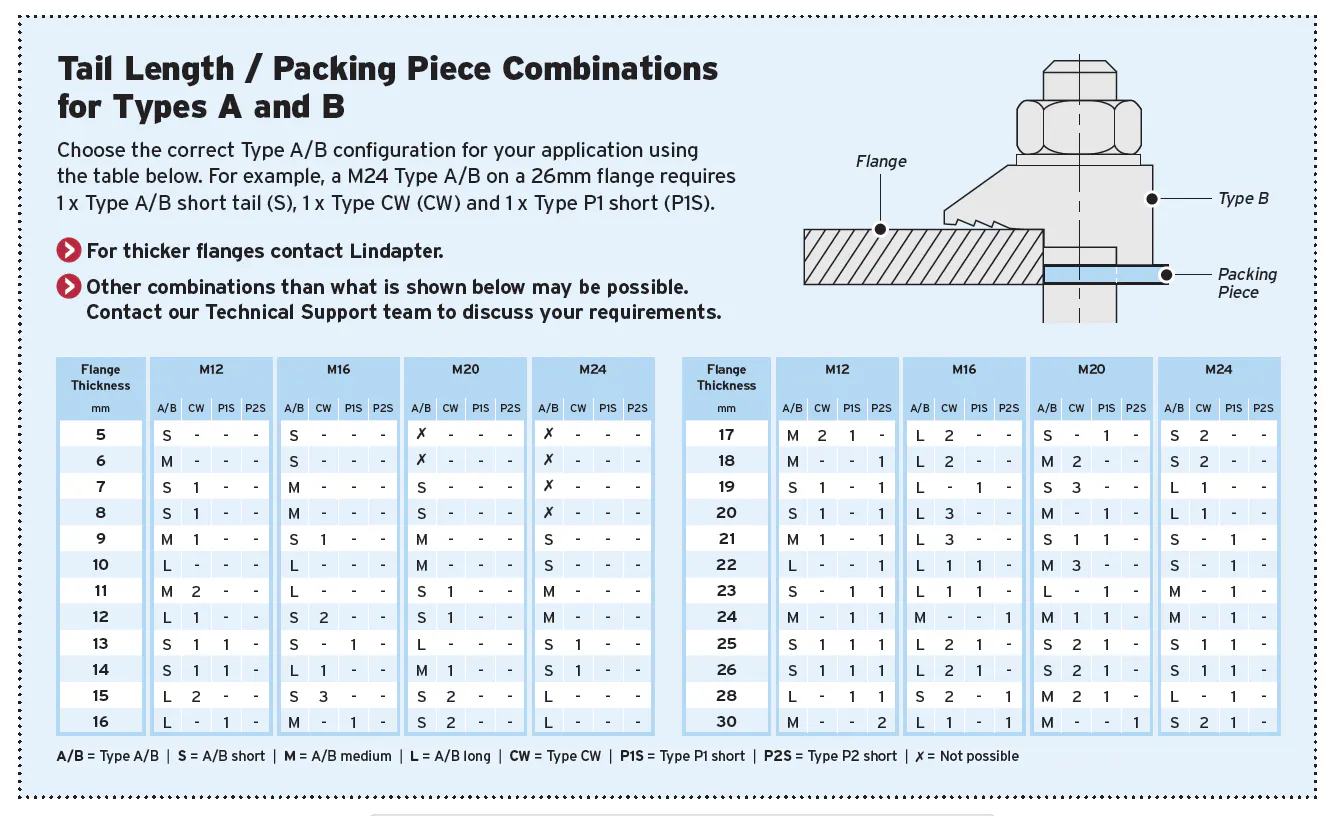

These packing pieces are compatible with the Type A and Type B clamps and are used to increase the clamping range to suit flange thicknesses. Types A and B are available with three different tail lengths (short, medium or long) and the correct combination of packing pieces should be used.
| Product Code | Bolt Size Z | Dimension T (mm) |
|---|---|---|
| P1S08 | M8 | 4 |
| P1S10 | M10 | 5 |
| P1S12 | M12 | 6 |
| P1S16 | M16 | 8 |
| P1S20 | M20 | 10 |
| P1S24 | M24 | 12 |
| Product Code | Bolt Size Z | Dimension T (mm) |
|---|---|---|
| P2S10 | M10 | 10 |
| P2S12 | M12 | 12 |
| P2S16 | M16 | 16 |
| P2S20 | M20 | 20 |
| P2S24 | M24 | 24 |
|
M16 Type P1 Lindapter Short Packing HDG
LDP1S16HDG
In Stock
|
|
Packing Pieces for Types A and B
These packing pieces are compatible with the Type A and Type B clamps and are used to increase the clamping range to suit flange thicknesses. Types A and B are available with three different tail lengths (short, medium or long) and the correct combination of packing pieces should be used.
| Product Code | Bolt Size Z | Dimension T (mm) |
|---|---|---|
| P1S08 | M8 | 4 |
| P1S10 | M10 | 5 |
| P1S12 | M12 | 6 |
| P1S16 | M16 | 8 |
| P1S20 | M20 | 10 |
| P1S24 | M24 | 12 |
| Product Code | Bolt Size Z | Dimension T (mm) |
|---|---|---|
| P2S10 | M10 | 10 |
| P2S12 | M12 | 12 |
| P2S16 | M16 | 16 |
| P2S20 | M20 | 20 |
| P2S24 | M24 | 24 |
