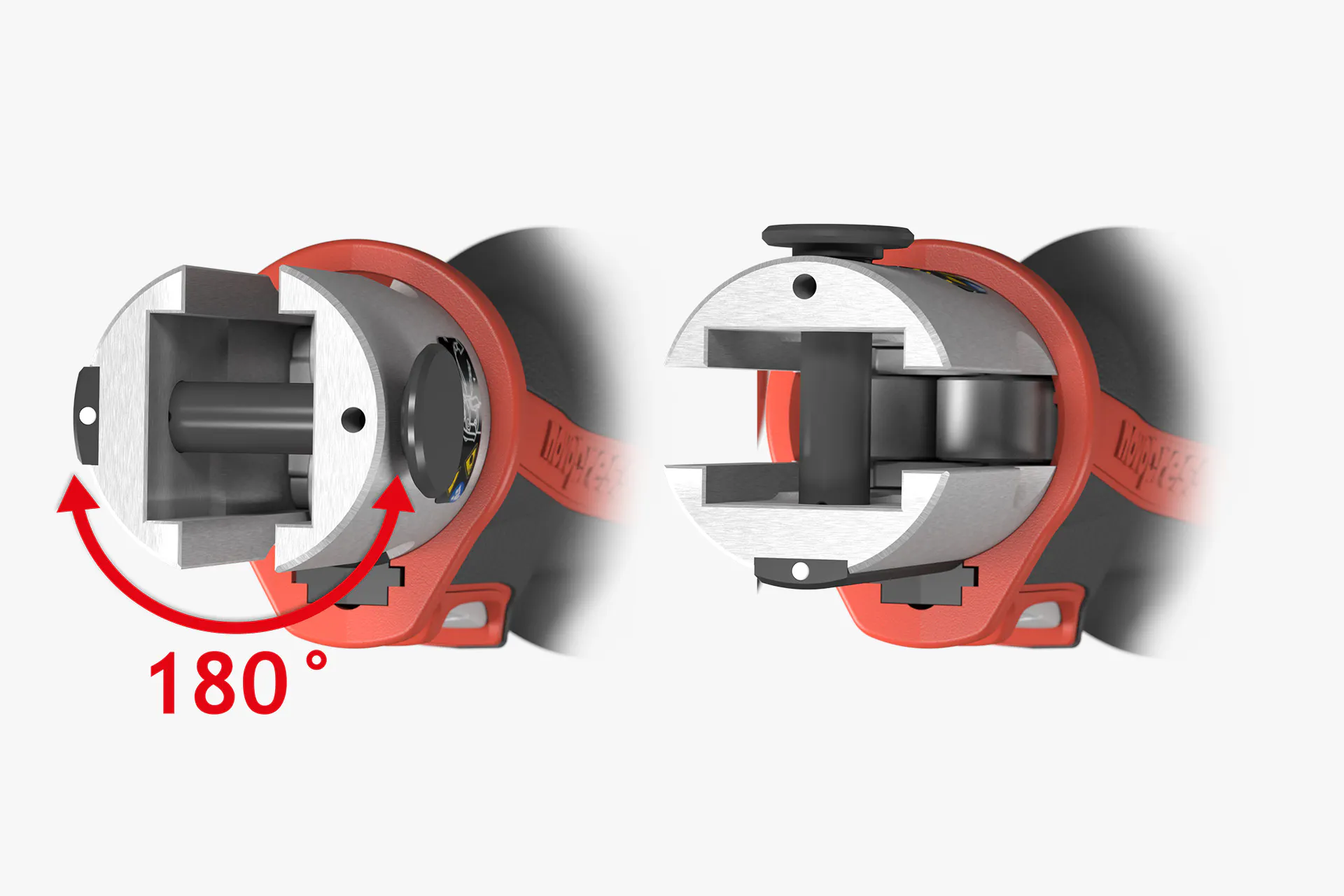

• Rotatable head: Enables the best possible positioning of the cordless crimping machine.
• Ergonomic handling: The 2K housing and low weight of just 1.6 kg ensure easy and safe one-handed operation.
• Powerful batteries: The Milwaukee® lithium-ion batteries offer reliable performance and a battery capacity of up to 250 crimps.

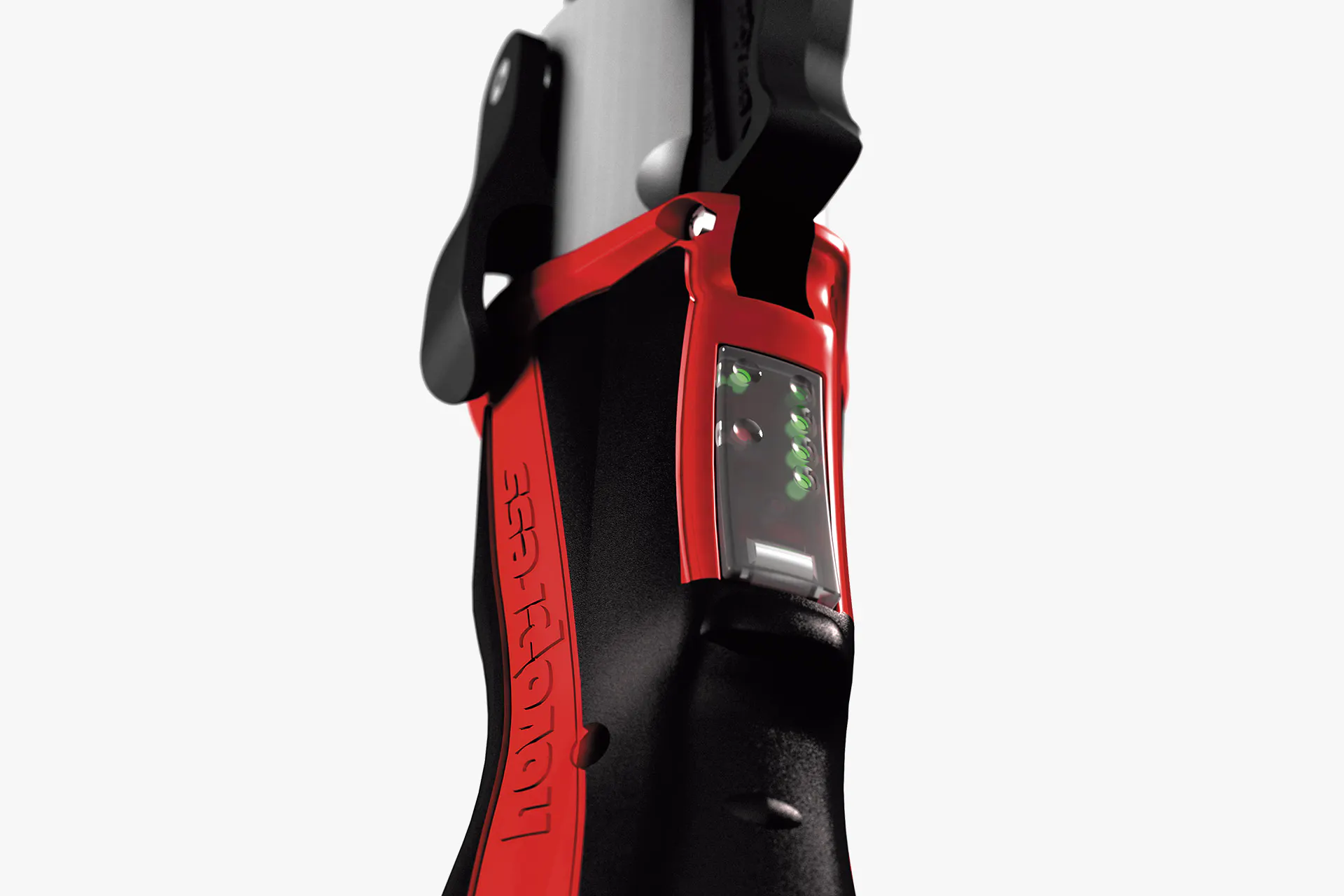

• LED indicator: Indicates the battery charge level and the status of the crimping tool.
• Pressing force monitoring: The redundant force cut-off provides additional safety.
• Electrical retaining bolt lock: Provides greater safety during installation.
• Pressing point lighting: Makes it easier to work in low ambient light.
• Bluetooth® technology: Enables evaluation of the crimping tool performance via the NovoCheck app.

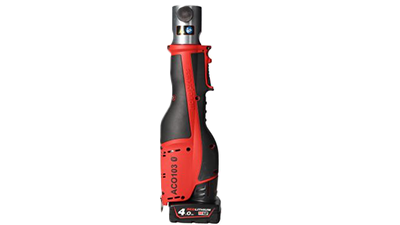

The ACO103 pressing device is ideal for installing plumbing, heating and air conditioning systems. With its compact dimensions of 320 mm long, 98 mm wide and 72 mm high, it is particularly handy and easy to transport. The pressing device with battery is compatible with all Milwaukee® battery systems, so you can choose the battery capacity that best suits your needs.

Nominal widths metal up to 35 mm

Nominal widths plastic up to 40 mm

Weight 1.6 kg

Length 320 mm

Width 98 mm

Height 72 mm

Electrical power absorbed 240 W

Piston force 19 kN

Piston stroke 30 mm

Battery M12™ Milwaukee® battery system (1)

Battery capacity (2) up to 250 crimps

Charging time (3) 45 -75 min.
