• Light-weight and handy
• Illumination of the press area for safe working
• Reduced need for maintenance due to modern motor technology
• Maintenance interval of two years – without limited numbers of pressing cycles
• Analysis of the pressing unit‘s performance via NovoCheck app

• Drinking water, gas and heating installations, pipe installations in the refrigeration/air conditioning sector, industry and commercial applications and many more
• Suitable for all authorized jaws of other system manufacturers in the market

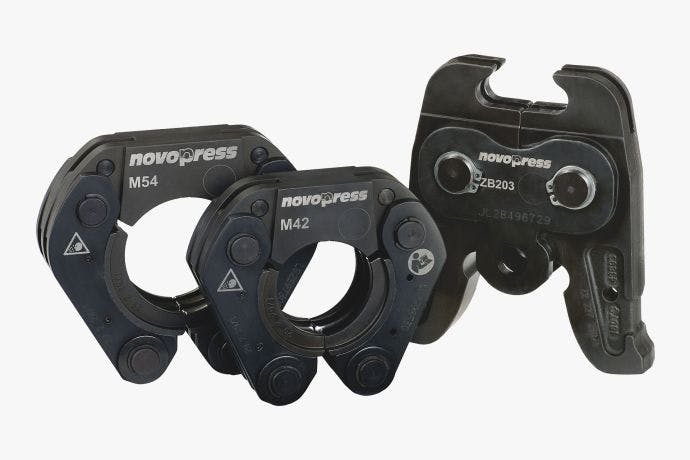

• All common profiles for metal and plastic systems available

Download the NovoCheck app that combines smartphone technology with pressing technology.
 A wireless connection between the pressing device and the mobile phone or tablet enables the installer to access device-related data using the NovoCheck app.


This means that you, as an installer, are able to check the status of the device yourself. By checking the power build-up, the LED functionality and the pressing point lighting, you can use the NovoCheck app to determine whether your device is working properly without the help of the service point.

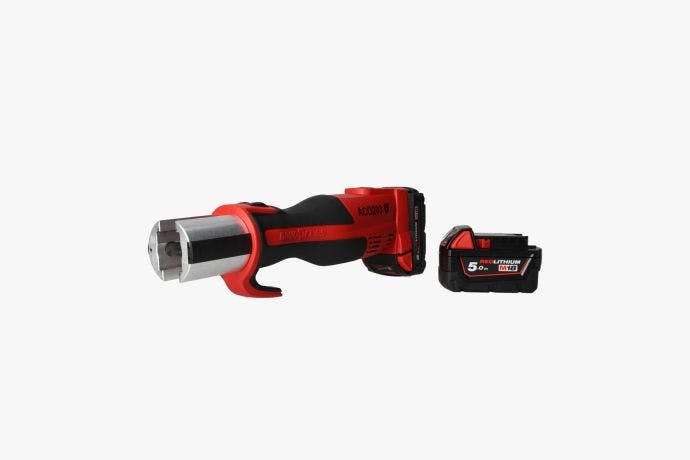

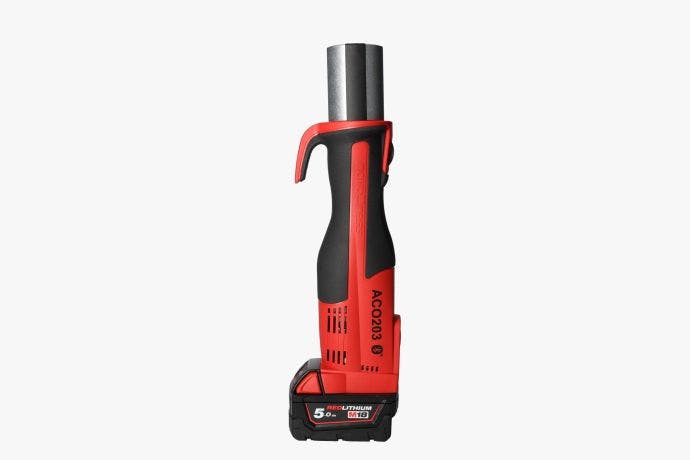

Dimensions: Metal pipe up to 54 mm (M-Contour), resp. up to 108 mm (V-Contour)/ Plastic pipe up to 110 mm

Weight without battery: 2.3 kg

Length: 387 mm

Width: 75 mm

Height: 111 mm

Power consumption: 450 W

Piston force: 32 kN

Piston stroke: 40 mm

Battery: Milwaukee® M18™ battery system2

Battery capacity: up to 250 pressing cycles

Charging time: 45 − 75 min.

Tool & Battery Warranty Information

• Tools: 2-year warranty, needs to be calibrated every two years
• Batteries: 1-year warranty

For details on warranty coverage, click here for Novopress Guarantee.

View Novopress website for more info.

Download Anzor Pressfit System Brochure

Download the NovoCheck app
