Stainless Steel Grades

Stainless Steel Grades


There are many different grades of Stainless Steel. The most common are 304 and 316. Some fasteners are also made in 303, 410, 420 and 430 as well as stronger and more corrosively resistant grades such as Bumax 88 (Class 80), Bumax 109 (Class 100), Bumax DX129 (2205 - Class 120), Bumax SDX109 (2507 - Class 100) and 2507 (Class 80). The following is an approximate guideline.

Stainless Grades PREN Values Features/Benefits Useful For In Action
410 11 A Martensitic grade that can be hardened by heat treatment Self-drilling (into metal) screws in non-coastal and less corrosive environments (e.g. interior use) Stainless Stairwell
420 12
  • A nickel-free grade with high carbon
  • It is stronger than 410
Spring pins in less corrosive environments Stainless Spring Rolls
HARDTEC 16
  • A Martensitic alloy like 410 so can be hardened with heat treatment
  • Has Molybdenum added so offers much better corrosion resistance (similar to 304 grade)
Self-drilling (into metal) screws. Stainless Self Drilling Screws
304 19
  • A general purpose grade
  • It is commonly used because it offers reasonable corrosion resistance, and is reasonably priced.
A variety of applications, including interior and non-coastal exterior applications which are hidden from sight (as it may tea-stain) Stainless Kitchen
316 24
  • Good corrosion resistance
  • Needs fresh water/rainfall to wash off contaminants like sea salt to maintain surface corrosion resistance and avoid "tea-staining".
  • For exterior applications, including near the coast with the correct surface finish and proper maintenance.
  • Good material for handrails, downpipes and building fasteners.
Stainless Downpipes
BUMAX 88 & 109 25
  • A 316 grade with extra Molybdenum added
  • Usually made to high strength classes 80 and 100
  • Has excellent corrosion resistance
Where high strength and excellent corrosion resistance is required. Oil Rig

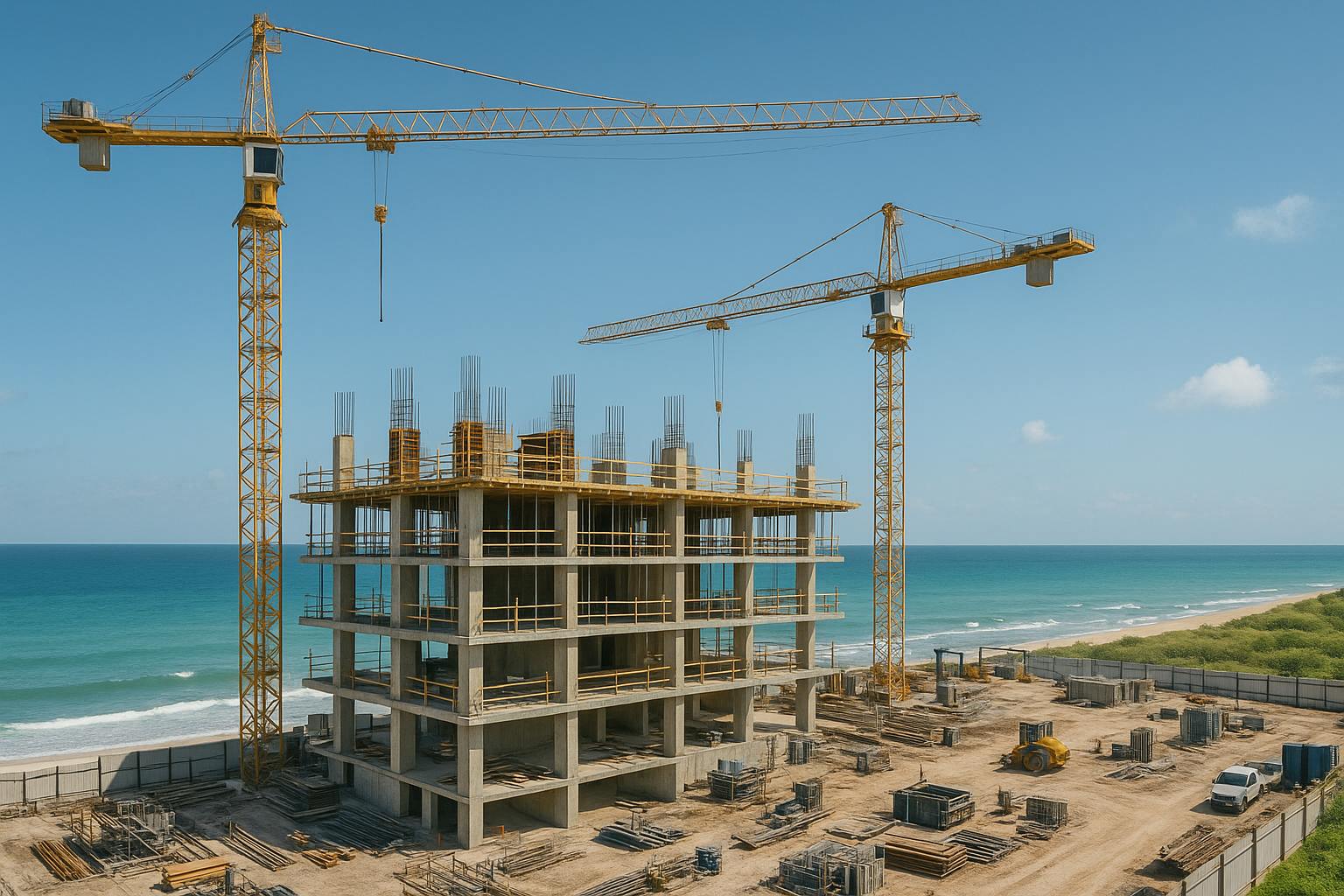

LEAN DUPLEX 2202 25
  • Combines ferritic and austenitic structures for high strength and corrosion resistance
  • Excellent fatigue resistance — 3x greater than 304
  • Performs better than 304 in acidic environments
  • Infrastructure projects, machinery, and chemical processing
  • Applications requiring high strength and corrosion resistance at a lower cost
Stainless Downpipes

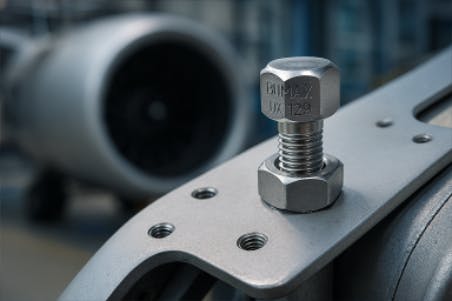

BUMAX DX 129 34
  • The world's strongest stainless steel bolt
  • Highest strength - unlike high-strength carbon steel fasteners, DX 129 does not suffer from hydrogen embrittlement
  • Excellent fatigue resistance — 3x greater than 304
  • Lower thermal expansion making it more dimensionally stable in temperature variations
  • Versatile applications in defense, marine, aerospace, automotive, manufacturing, and construction
Stainless Downpipes

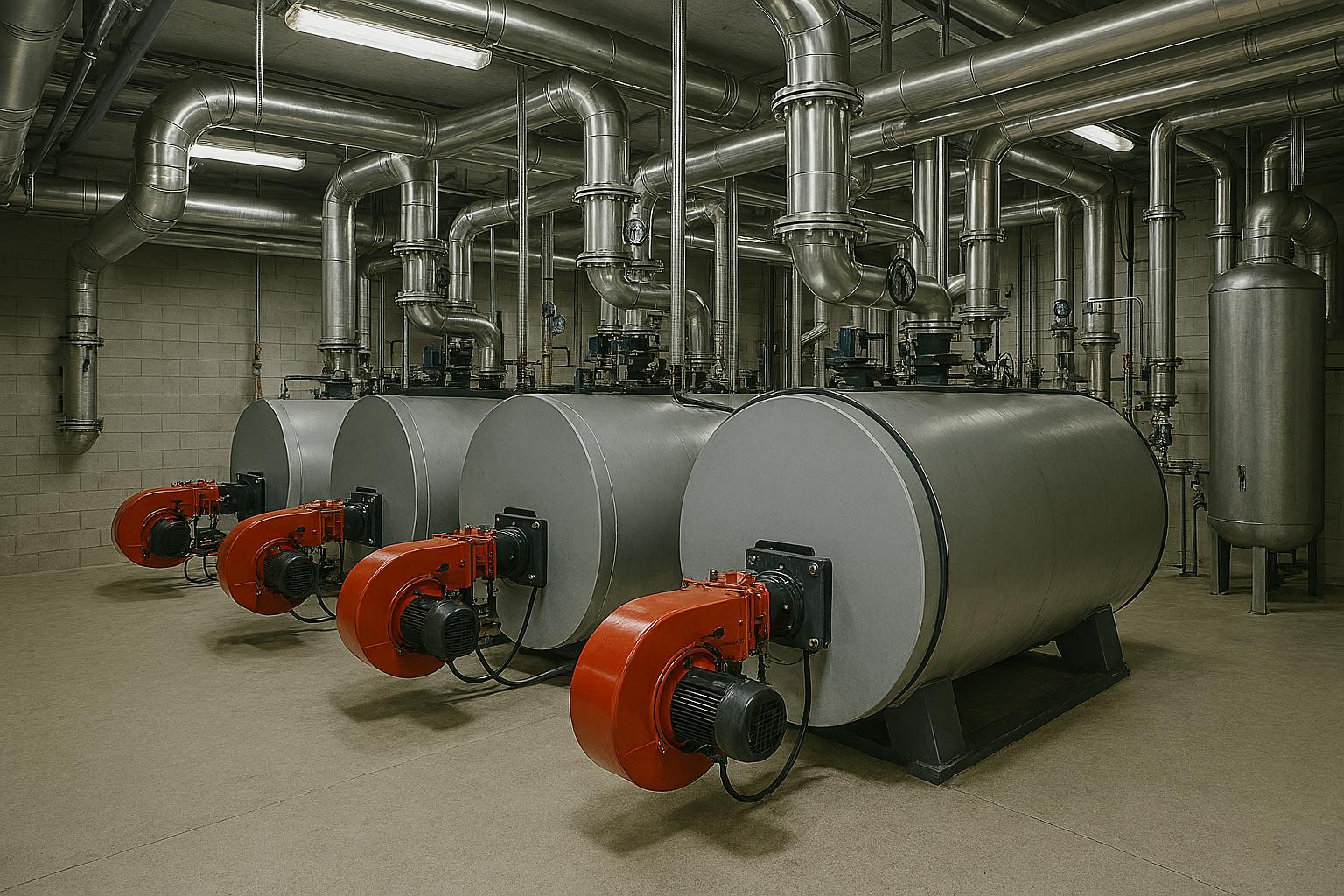

DUPLEX 2205 34
  • Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking
  • Higher strength than austenitic grades like 304 and 316
  • Good weldability and toughness
  • Suitable for harsh environments including marine and chemical processing
  • Coastal and industrial applications
  • Marine hardware, structural components, and pressure vessels
Stainless Downpipes
2507 41
  • Super Duplex Stainless Steel
  • High corrosion resistance
  • Fully resistant to localised corrosion (pitting/crevice corrosion) when immersed in seawater
Fully resistant to localised corrosion (pitting/crevice corrosion) when immersed in seawater Oil Rig
Bumax SDX 109 41
  • Super Duplex Stainless Steel
  • High strength and high corrosion resistance
  • Situations requiring high strength and very high corrosion resistance such as constant salt water immersion
Situations with very high corrosion resistance such as constant salt water immersion Oil Rig
1.4529 47
  • Outstanding resistance to chloride-induced corrosion (pitting, crevice, and stress corrosion cracking)
  • Performs well in seawater, chemical processing, and acidic environments

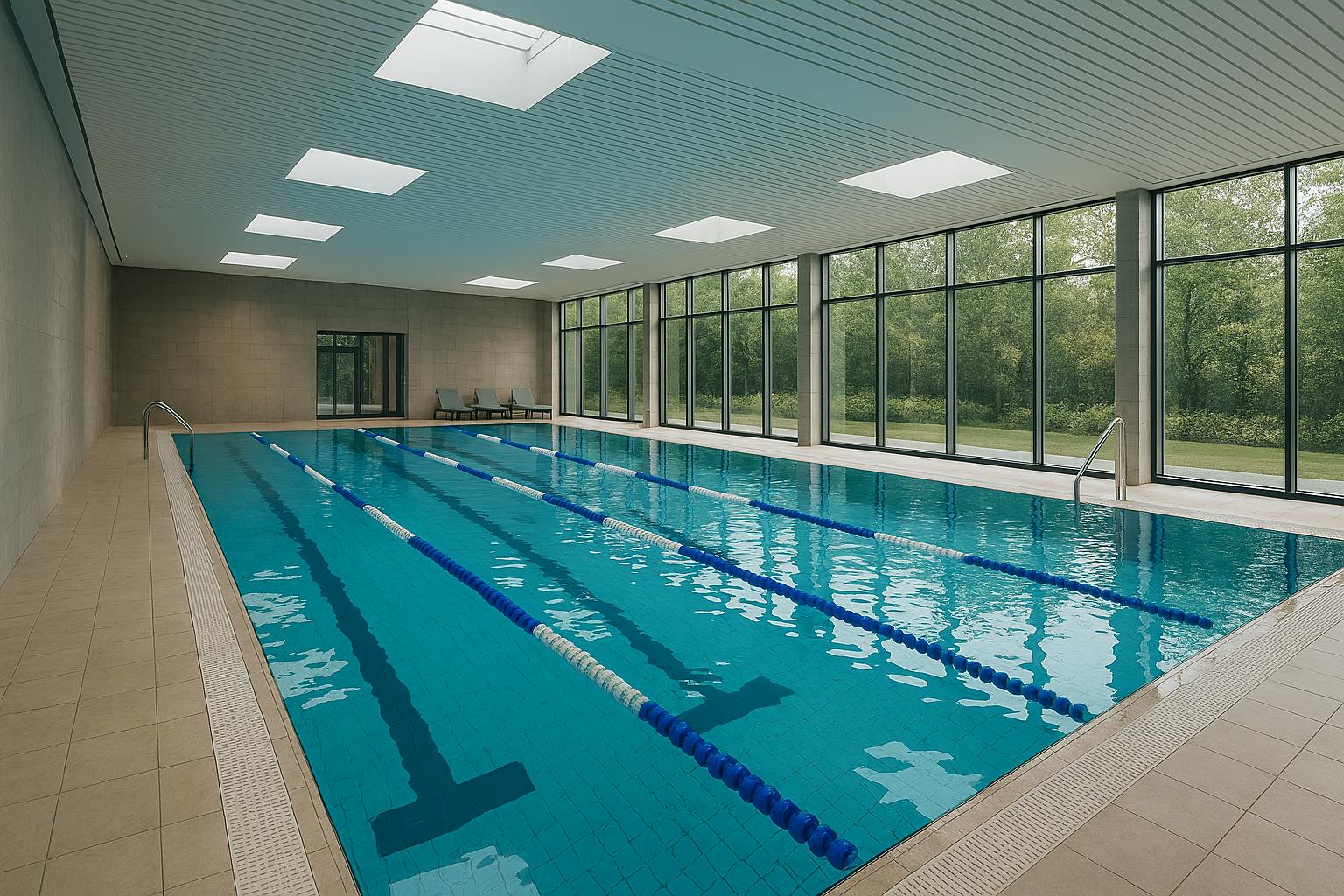

For use above indoor swimming pools, chemical and petrochemical processing, power generation Submarine

Important WARNING! BEWARE OF LOW NICKEL STAINLESS STEEL
Some proprietary grades with high manganese and low nickel have found their way onto the market and are being sold as 304 or 316. Some are even stamped as such. These alloys also have low chromium and are not suitable for New Zealand's's harsh conditions - especially coastal environments.

Environment Type 304 Type 316
Seafront Grade not recommended Monthly
Coastal (within 5km of the coast) Grade not recommended 6-12 months (wire: monthly)
Industrial and Urban 3-6 months 6-12 months (wire: 2-12 per year)
Suburban Rural Annually or as required by experience
Internal As required to maintain appearance

For more information see our Cleaning & Maintenance Guide

NB:This information is provided as a guide only. Anzor does not accept liability for the application of this information.

For technical advice about stainless steel and grade selection, you can log a free enquiry with the Nickel Institute.
