Our flexi-mesh range is the leading material used to create lightweight structures including balustrades, fall protection screens, greenwalls and facades. Manufactured from high quality Korean-made hamma® G316 stainless steel wire, flexi-mesh has a high tensile strength and relatively low weight. It’s unique tensile properties and ability to span long distances minimises the requirements for supporting cables and attachments, reducing overall project costs.

Advantages

• Fully Engineered: Structural Design Certification approved.
• Standards Compliant: Meets Australian/New Zealand Standard AS/NZS 1170.1:2002 for areas susceptible to crowding and AS5100.1:2017 for bridge design.
• Versatile Fixing Details: Various options to suit project requirements.
• Customizable: Multiple sizes and aperture types to meet specific project parameters.
• Multi-Use System: Suitable for balustrading, fall-arrest, anti-climb, enclosure, and screening.

Key Attributes of Flexi-Mesh Stainless Steel Architectural Cable Mesh:

1. Flexible: Can be used to design plane surfaces or tensioned into three-dimensional forms for unique, elegant, and lightweight tensile architecture.
2. Adaptable: Suitable for balustrades, safety netting, zoological enclosures, tensile facades, and art installations.
3. Tensile Strength: High load capacity and low relative weight allow for creative designs over large distances.
4. Unique: Each panel is custom-designed and manufactured to meet specific project requirements, with engineering support for static load calculations and performance criteria.
5. High Quality: Made from hamma® X, the world's leading marine and architectural stainless steel wire rope, ensuring product quality, integrity, and longevity.
6. Reduced Maintenance Costs: Made from 100% AISI316 stainless steel, providing strength, high performance under severe conditions, corrosion and rust protection, and minimal maintenance.

Projects

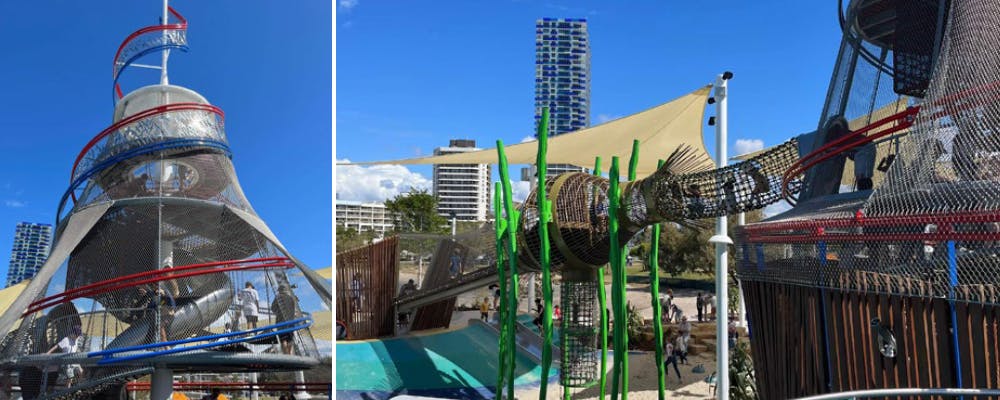

Southport Playground

• Location: Gold Coast, Australia
• Client: Fleetwood Urban
• Year of Construction: 2022

Recently named one of the top 20 playgrounds in Queensland, this multi-million dollar bespoke play structure is a key feature of the City of Gold Coast’s Broadwater Parklands Masterplan. Created by Fleetwood Urban in collaboration with AECOM, it includes over 300m² of Flexi-Mesh and hamma® stainless steel cables and fittings. The central 4-level spiral tower is designed to attract families and keep children entertained for hours.

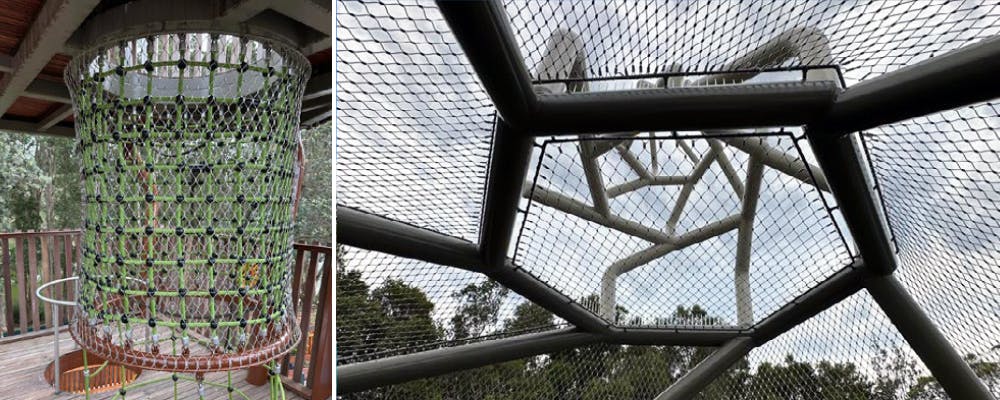

Sir Joseph Banks Playground

• Location: Sydney, Australia
• Client: Bayside Council
• Year of Construction: 2023

This 5,200m² adventure playground is designed with children's safety in mind, fully enclosed with Flexi-Mesh and hamma® stainless steel wire rope. It features a towering play structure, steep log climb, high-speed slides, climbing nets, trampolines, timber balance equipment, rock climbing walls, a flying fox, musical play elements, sandstone art, and sensory play items, all set within beautifully landscaped areas.

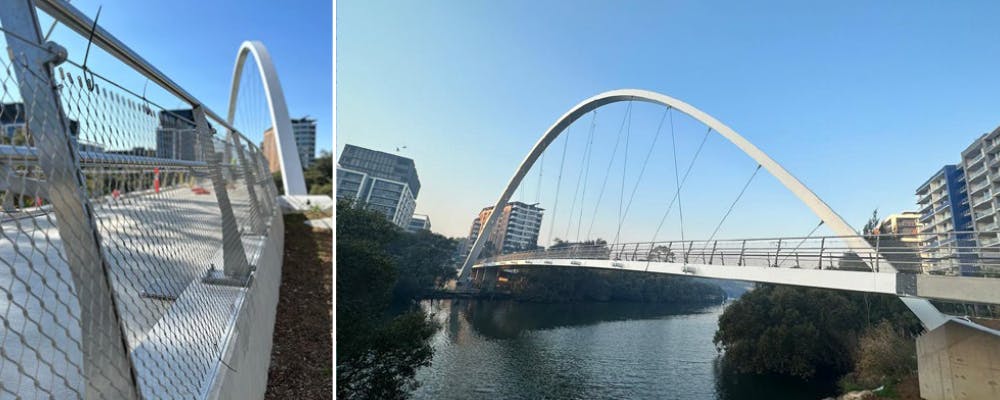

Alfred Street Bridge

• Location: Sydney, Australia
• Client: Abergeldie Complex Infrastructure
• Year of Construction: 2023

Spanning the Parramatta River, this pedestrian and cyclist bridge is Australia's first diagonal arch bridge, measuring nearly 200 meters in length and 4.5 meters in width. It features Grade 350 stanchions, Grade 316 handrails, and stainless steel mesh. The project includes over 430m² of Grade 316 Flexi-Mesh, more than 1km of Grade 316 hamma® stainless steel wire rope, and over 700 bespoke fittings, showcasing engineering and design excellence.

Specifications

• High quality 316 Stainless Steel KOS wire Made in Korea
• 15 year warranty (see Terms and Conditions)
• Strength data available and load testing available if required
• Click here to view Installation Guidelines
• Click here to read the guidelines on cleaning and maintenance
