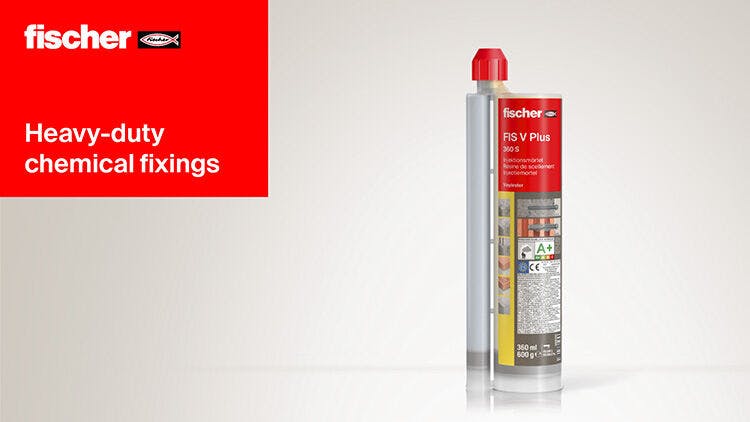

FIS V Plus 360S Fischer Chemical Cartridge 558744 -2 Nozzles
DYCFCVP360S
In Stock
|
|
The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, masonry and for special applications. It has approved use in water-filled drill holes that enables a wide range of applications, even under harsh environmental conditions.

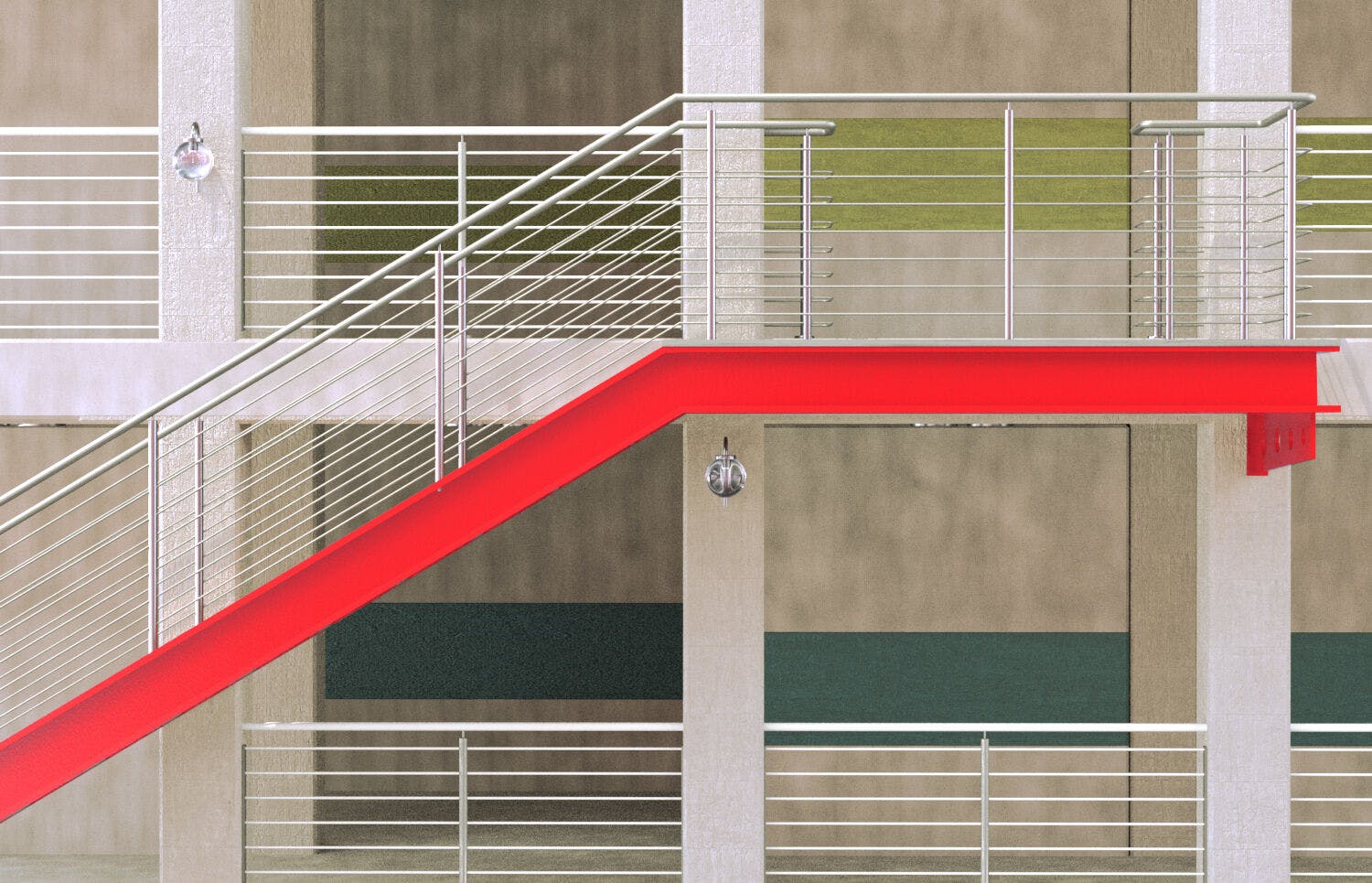

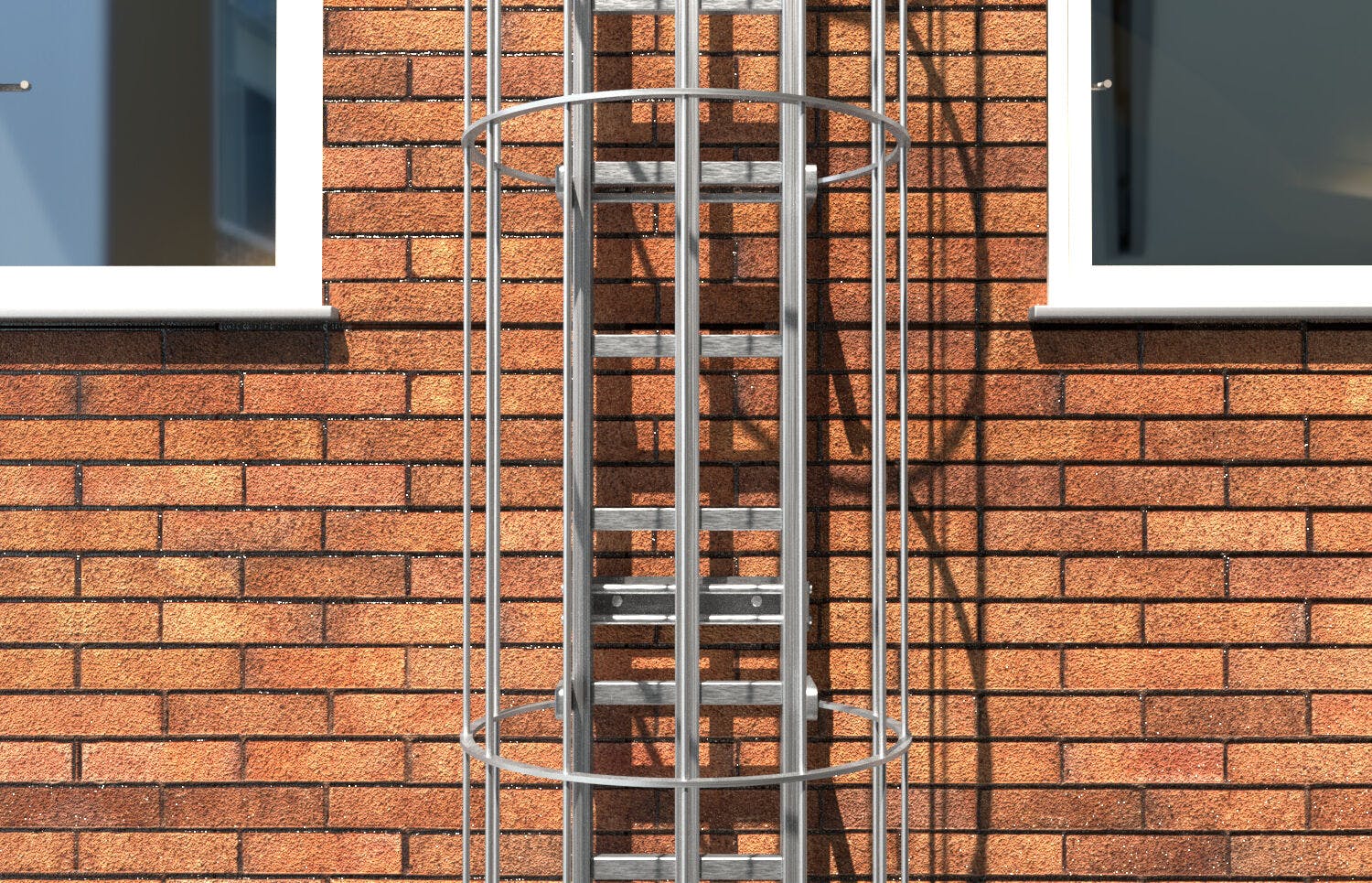

Applications
Building materials
Approved for anchorings in:
Approved for:
You can find detailed information on building materials in the approval document.
Functionality
| CURING TIME FIS V | |||
|---|---|---|---|
| Cartridge temperature (mortar) |
Gelling time | Temperature at anchoring base |
Curing time |
| -5°C – 0°C | 24 hrs. | ||
| +0°C – +5°C | 13 min. | +0°C – +5°C | 3 hrs. |
| +5°C – +10°C | 9 min. | +5°C – +10°C | 90 min. |
| +10°C – +20°C | 5 min. | +10°C – +20°C | 60 min. |
| +20°C – +30°C | 4 min. | +20°C – +30°C | 45 min. |
| +30°C – +40°C | 2 min. | +30°C – +40°C | 35 min. |
The above times apply from the moment of contact between resin and hardener in the static mixer. For installation, the cartridge temperature must be at least +5°C. For longer installation times, i.e. when interruptions occur in work, the mixer should be replaced.
Approval
Load Table - Injection system FIS V Plus with internal threaded anchor RG M I - Permissible loads of a single anchor in normal concrete of strength class C20/25.
Load Table - Injection system FIS V Plus with threaded rod FIS A resp. RG M - Permissible loads of a single anchor in normal concrete of strength class C20/25.
Load Table - Injection system FIS V Plus with threaded rod FIS A in solid and perforated masonry - Permissible loads 2) for a single anchor in masonry for pre-positioned installation.
|
FIS V Plus 360S Fischer Chemical Cartridge 558744 -2 Nozzles
DYCFCVP360S
In Stock
|
|
The FIS V Plus injection mortar has numerous system approvals, such as in cracked and non-cracked concrete, masonry and for special applications. It has approved use in water-filled drill holes that enables a wide range of applications, even under harsh environmental conditions.
Applications
Building materials
Approved for anchorings in:
Approved for:
You can find detailed information on building materials in the approval document.
Functionality
| CURING TIME FIS V | |||
|---|---|---|---|
| Cartridge temperature (mortar) |
Gelling time | Temperature at anchoring base |
Curing time |
| -5°C – 0°C | 24 hrs. | ||
| +0°C – +5°C | 13 min. | +0°C – +5°C | 3 hrs. |
| +5°C – +10°C | 9 min. | +5°C – +10°C | 90 min. |
| +10°C – +20°C | 5 min. | +10°C – +20°C | 60 min. |
| +20°C – +30°C | 4 min. | +20°C – +30°C | 45 min. |
| +30°C – +40°C | 2 min. | +30°C – +40°C | 35 min. |
The above times apply from the moment of contact between resin and hardener in the static mixer. For installation, the cartridge temperature must be at least +5°C. For longer installation times, i.e. when interruptions occur in work, the mixer should be replaced.
Approval
Load Table - Injection system FIS V Plus with internal threaded anchor RG M I - Permissible loads of a single anchor in normal concrete of strength class C20/25.
Load Table - Injection system FIS V Plus with threaded rod FIS A resp. RG M - Permissible loads of a single anchor in normal concrete of strength class C20/25.
Load Table - Injection system FIS V Plus with threaded rod FIS A in solid and perforated masonry - Permissible loads 2) for a single anchor in masonry for pre-positioned installation.
